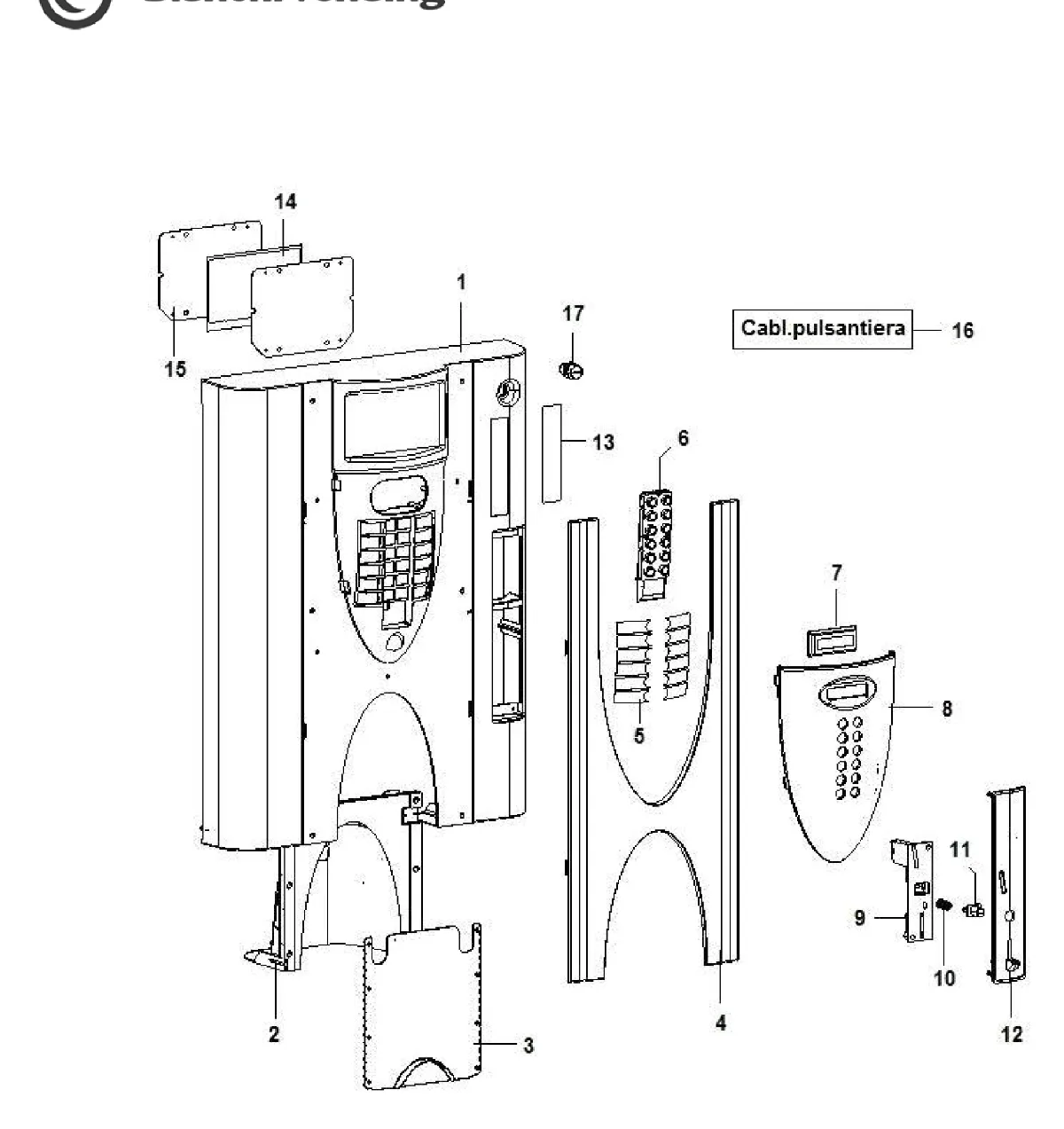

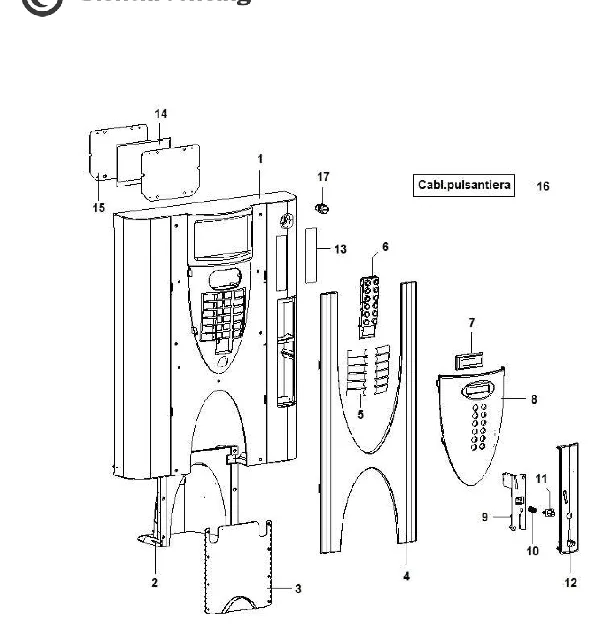

FRONT DOOR (1350)
Lámina 1 de 26
Piezas de esta lámina
- 1 LEI200 door
- 2 CUP STATION LEI200 AUTOMATICA
- 3 LEI200 dispensing chamber door
- 4 LEI200 R9006 door frame
- 5 LEISA Italian selection labels
- 6 LEI 200 Capacitive keyboard assembly
- 7 DISPLAY 2X16 C/C BIANCO CIR.ETO
- 8 Neutral keypad shields assy
- 9 coin validator sup sprint/iris
- 10 spring button.
- 11 coin recov. button alluminium
- 12 payment syst panel LEIsa
- 13 LEI200 DOOR STICKER
- 14 LEI200 Black Edition upper plate
- 15 LEI200 info panel lexan (1mm.th.)
- 16 CABL.PULSANT.BV901/LEISA C/GUAINA TERM.
- 17 RIELDA 538 LT lock w/out lever

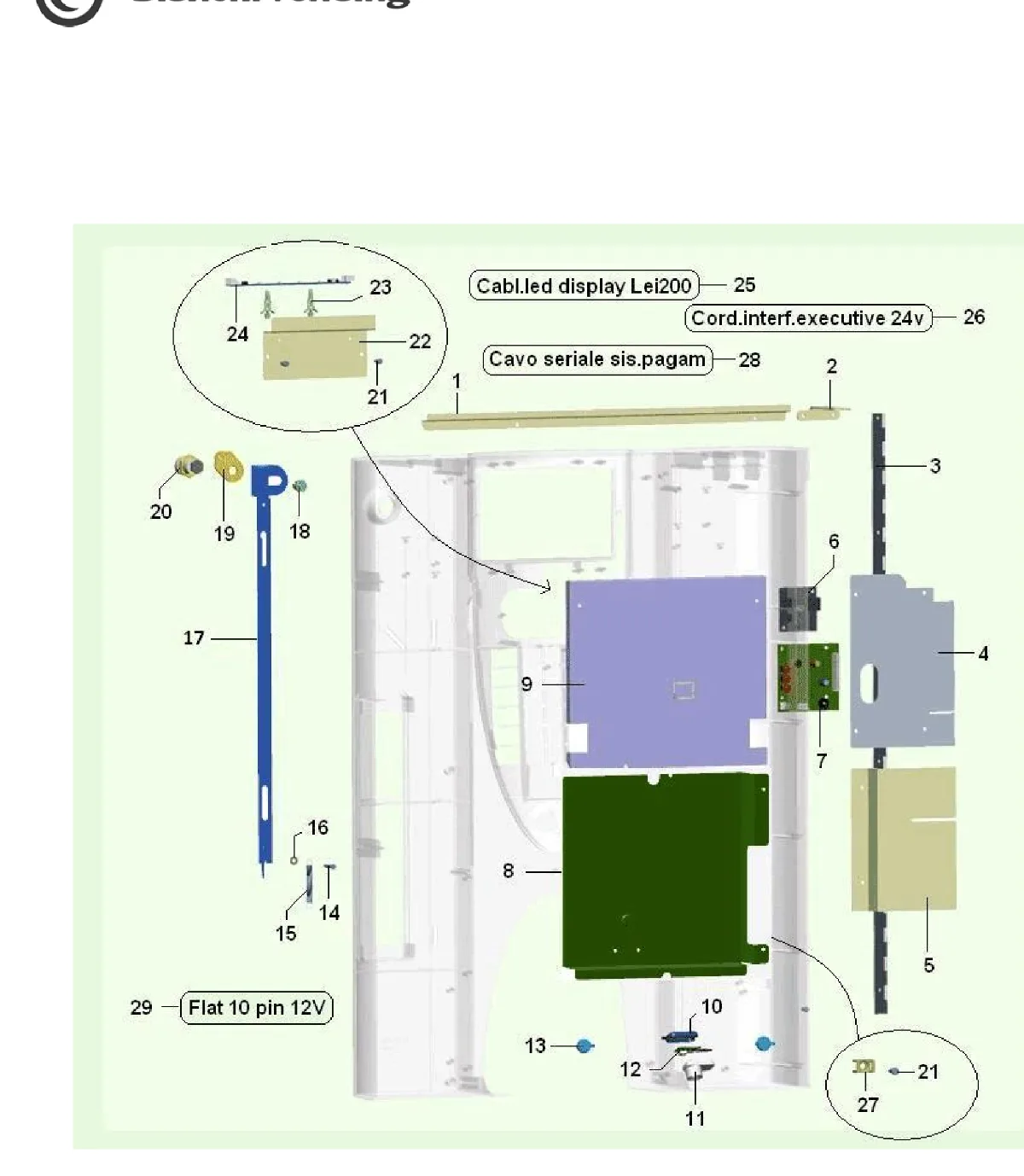

INNER DOOR (1351)
Lámina 2 de 26
Piezas de esta lámina
- 1 RINFORZO PORTA LEI200
- 2 LEI200 switch plate
- 3 L630 hinge 120 pitch
- 4 Door board protective carter
- 5 Door cable protective carter
- 6 Payment systems interface board
- 7 LEI200 display board
- 8 Door central carter
- 9 CARTER LCD-LEXAN PORTA
- 10 LED light diffuser holder
- 11 LED light diffuser
- 12 cupstation light LEIsa
- 13 BV931 door slow fall
- 14 screw 3,5*20 TCB 2F UNI9707
- 15 spring
- 16 plain washer for 4M screw
- 17 LEI200 Rielda locking rod
- 18 DRAWER WHEEL PIN
- 19 BVM975 LOCK HOOK
- 20 RIELDA 538 LT lock w/out lever
- 21 scew 3,5*10 TCB 2F UNI9707
- 22 SUPP.DISPLAY LEI200
- 23 board spacer
- 24 6 LEDS BAR COLD LIGHT
- 25 CABL.LED DISPLAY LEI200
- 26 executive cable
- 27 blocker FTH-13S-01
- 28 303/901 pay system serial cabl
- 29 10pin 12w L=2000 flat cable

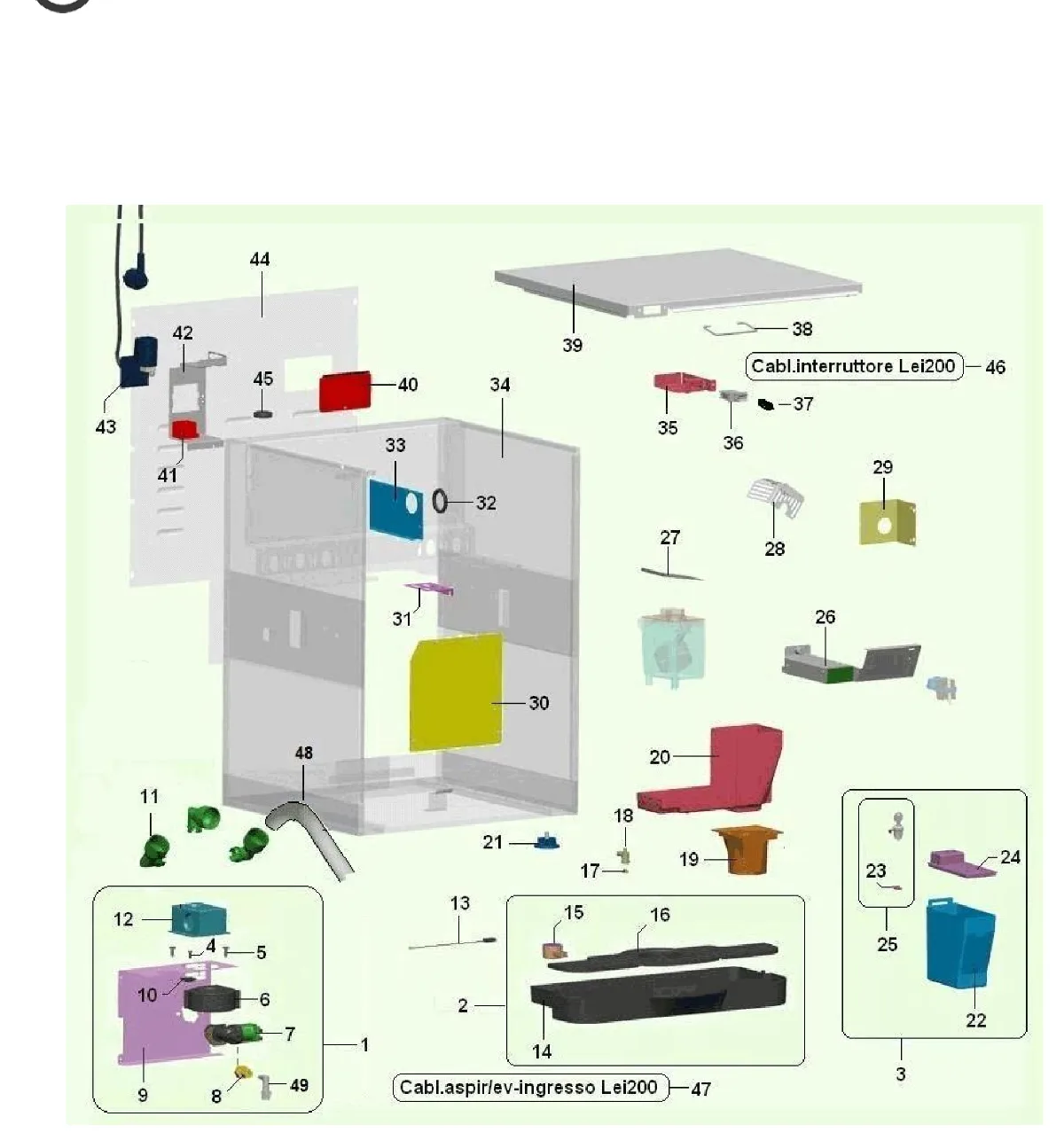

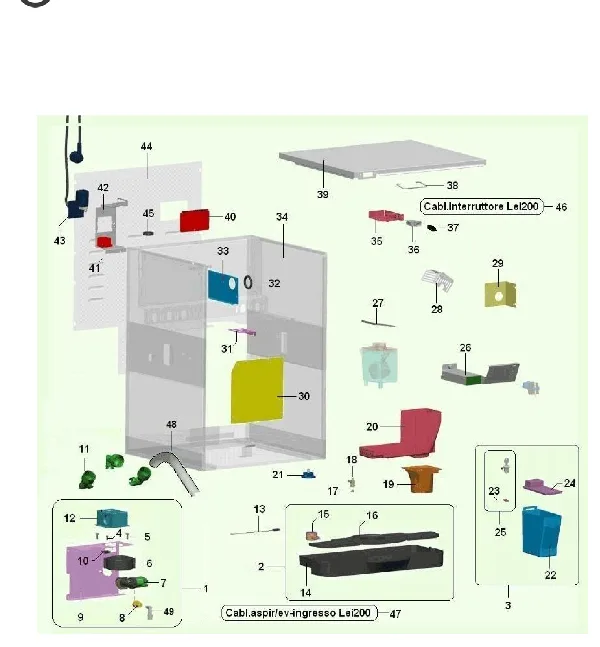

CABINET AND COMPONENTS OF COMPLETION
Lámina 3 de 26
Piezas de esta lámina
- 1 ASS.ALIMENTAZIONE/ASP LEI200 ESP
- 2 3LEI200 drops tray assy
- 3 coinbox assembly
- 4 VITE AFIL.TCC S/PDIN 7981 C15 3,9X9,5ZB
- 5 self-tapping screw 4,8*12
- 6 24VDC 0,5A aspirator
- 7 E.V. R156 RPE CON FILTRO E VNR
- 8 Straight connection 6-1/4 A-234
- 9 SUPP.INTERR.ASPIRATORE LEI200
- 10 Adhesive square base 19x19
- 11 Suction pipe joint
- 12 CONVOGLIATORE ARIA 3 BOCCHE
- 13 Level sensor reed
- 14 LEI200 drops tray
- 15 Too full sensor floater
- 16 LEI200 drops tray cover
- 17 drain nozzle reduction sprint
- 18 drain nozzle
- 19 coffee waste bag fixing
- 20 iris blackcoffeewaste conveyor
- 21 feet for cabinet M8*16 LEIsa
- 22 CASS.MONETE LEI200
- 23 LEI200 COIN BOX LOCK LEVER
- 24 coin box lid
- 25 SERR.SCATTO L20 90°ORAR C/CHIAVE E LEVA
- 26 LEI200 sugar nozzles support assy
- 27 protection plate for filter
- 28 boiler cover BV303/901
- 29 CARTER PROTEZIONE CABL.LEI200
- 30 Waste coffee cover plate
- 31 SUPP.CONNETTORI 16-12-10 PIN
- 32 cable damper(35*7 - rubber)
- 33 CARTER PASSAGGIO CAVI
- 34 LEI200 black cabinet assy
- 35 LEI200 switch port bracket
- 36 safety switch
- 37 Black service key
- 38 coin box handle
- 39 ASS.TETTO CHIUSO LEI200 NERO
- 40 Plug for cabinet backrest
- 41 BVM plugs assy
- 42 SUPP.ALIMENTAZIONE LEI200.ETO
- 43 net filter quick connection with cable
- 44 LEI200 backrest
- 45 cable feeder
- 46 CABL.INTERRUTTORE LEI200
- 47 CABL.ASPIR/EV-INGRESSO LEI200
- 48 28x33 Leviflex pipe
- 49 turning elbow connection 1/8

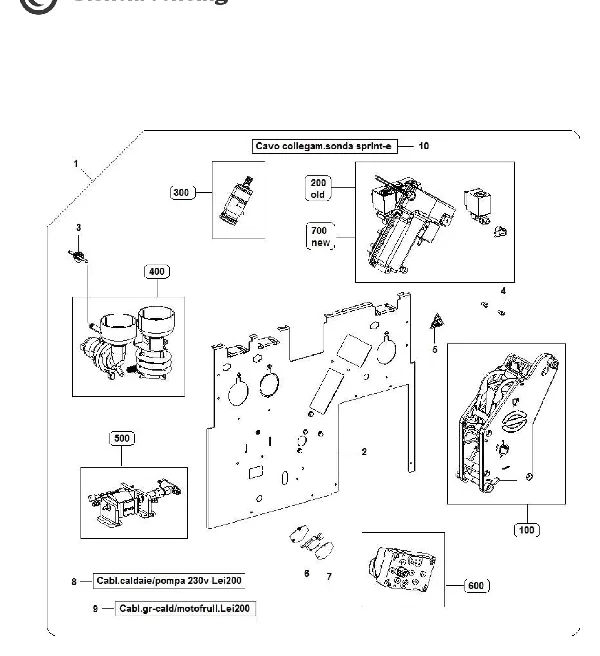

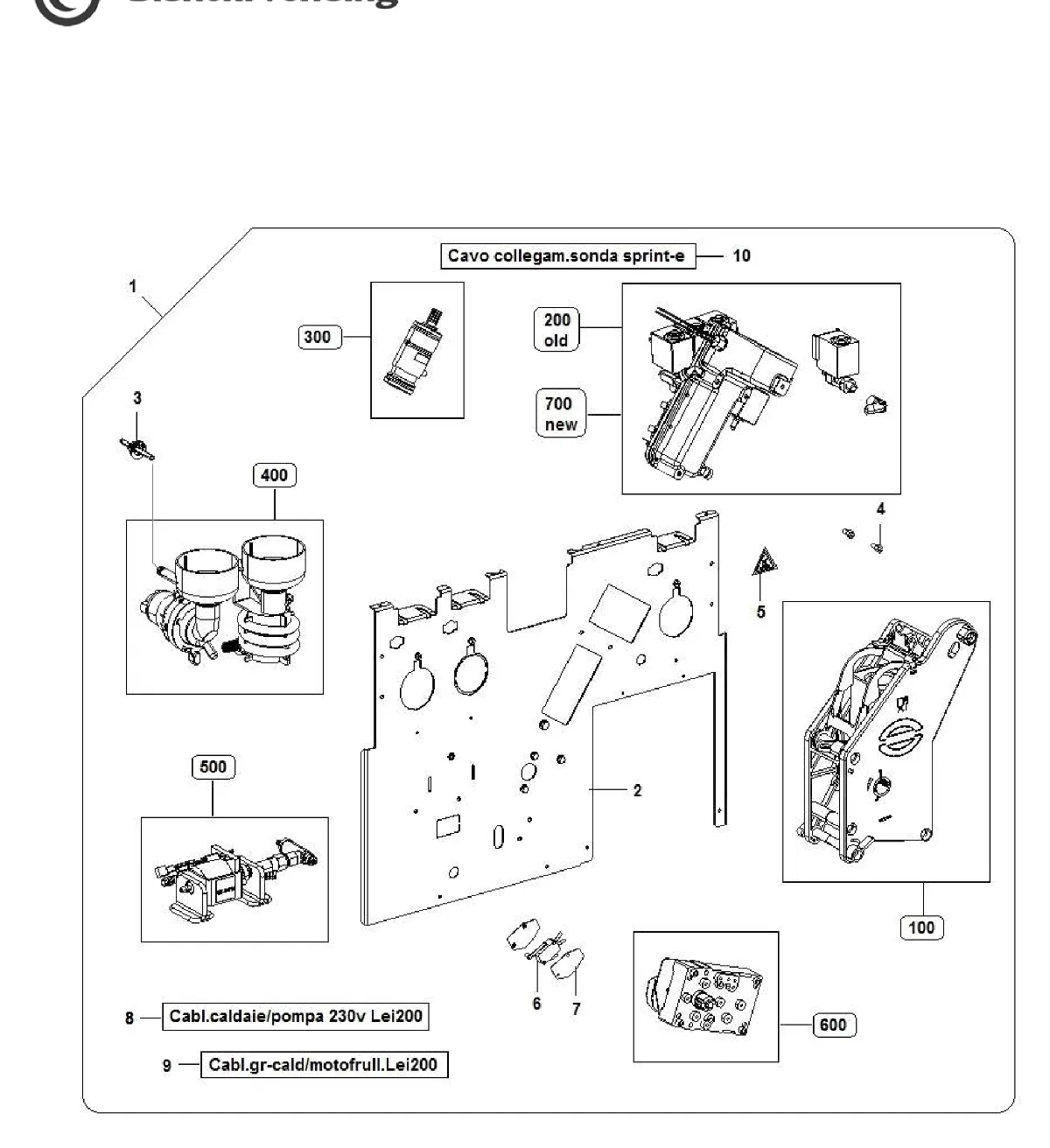

COFFE GROUP PLATE ASSEMBLY (1353)
Lámina 4 de 26
Piezas de esta lámina
- 1 C/O PIAST.GR.CAFFE LEI200 230V
- 2 ASS.PIASTRA GR.MIXER LEI200
- 3 INIETTORE COPPETTA NERA
- 4 group fixing pin
- 5 TARGH. PERICOLO ALTA TEMPERATURA
- 6 microswitch with wheel
- 7 ISOLANTE PER MICRO
- 8 CABL.CALD/POMP.230V LEI200 INMETRO
- 9 CABL.GR-CALD/MOTOFRULL.LEI200 INMETRO
- 10 boiler probe cable

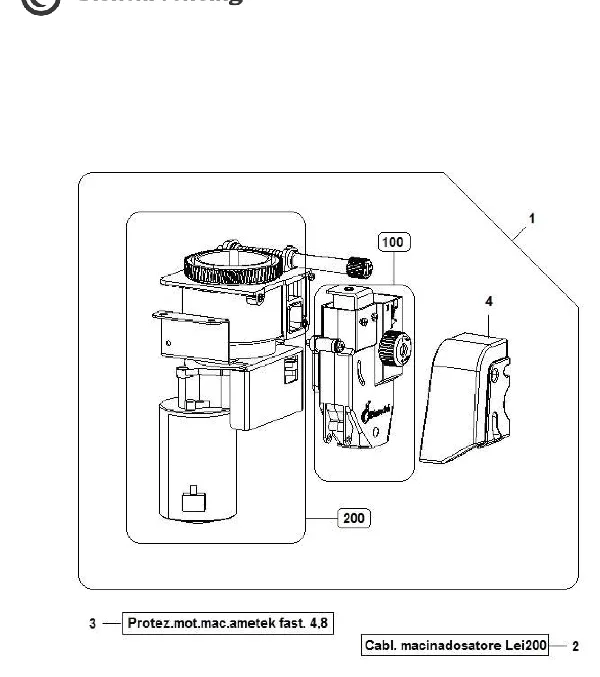

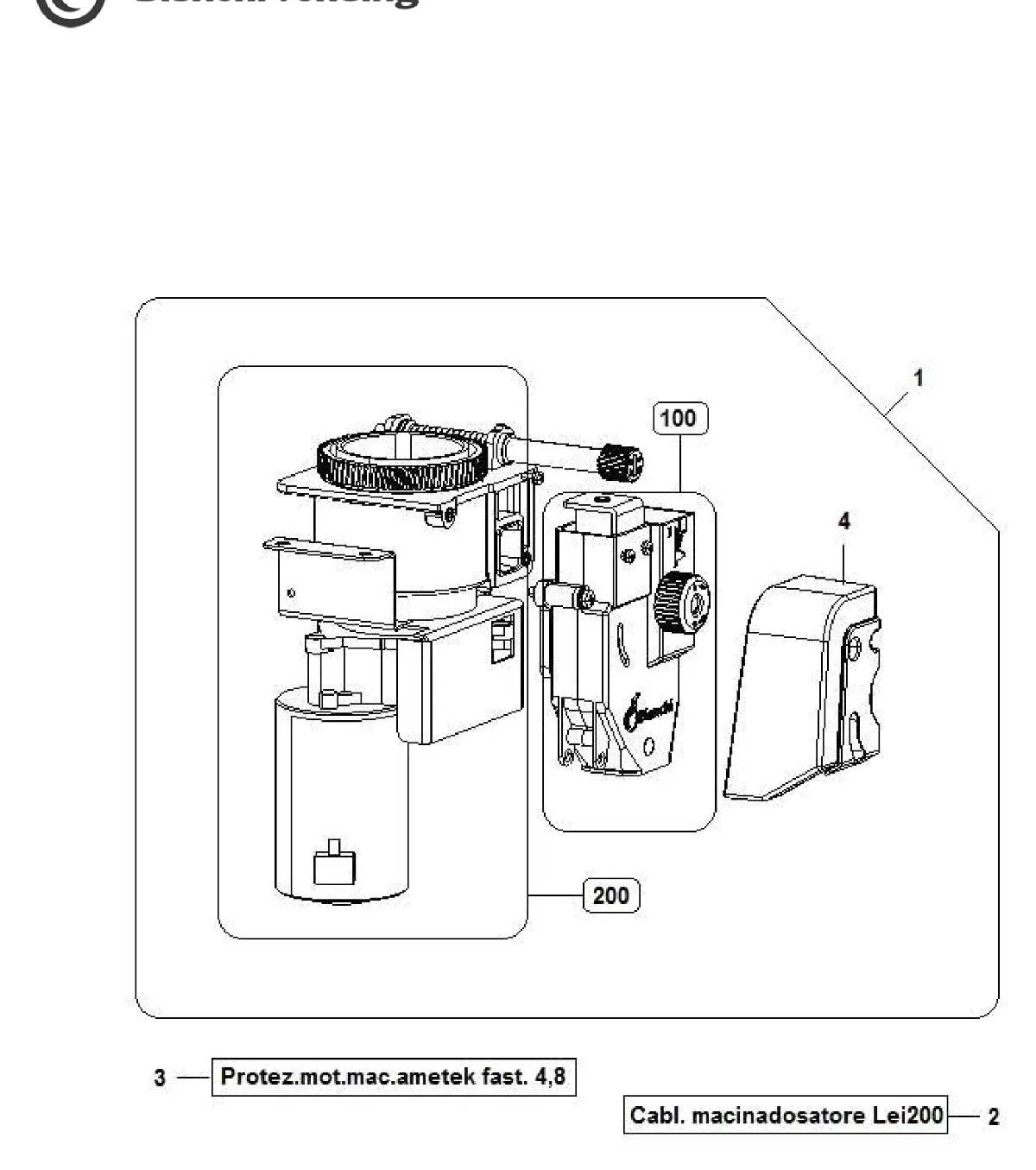

GRINDER DISPENSER ASSEMBLY (1354)
Lámina 5 de 26
Piezas de esta lámina
- 1 C/O LEI200 RIGHT GRINDERDOSER
- 2 LEI200 GRINDERDOSER WIRING
- 3 AMETEK FAST 4,8 grinder motor
- 4 BLACK COFFEE CARTER GRINDERDOSER

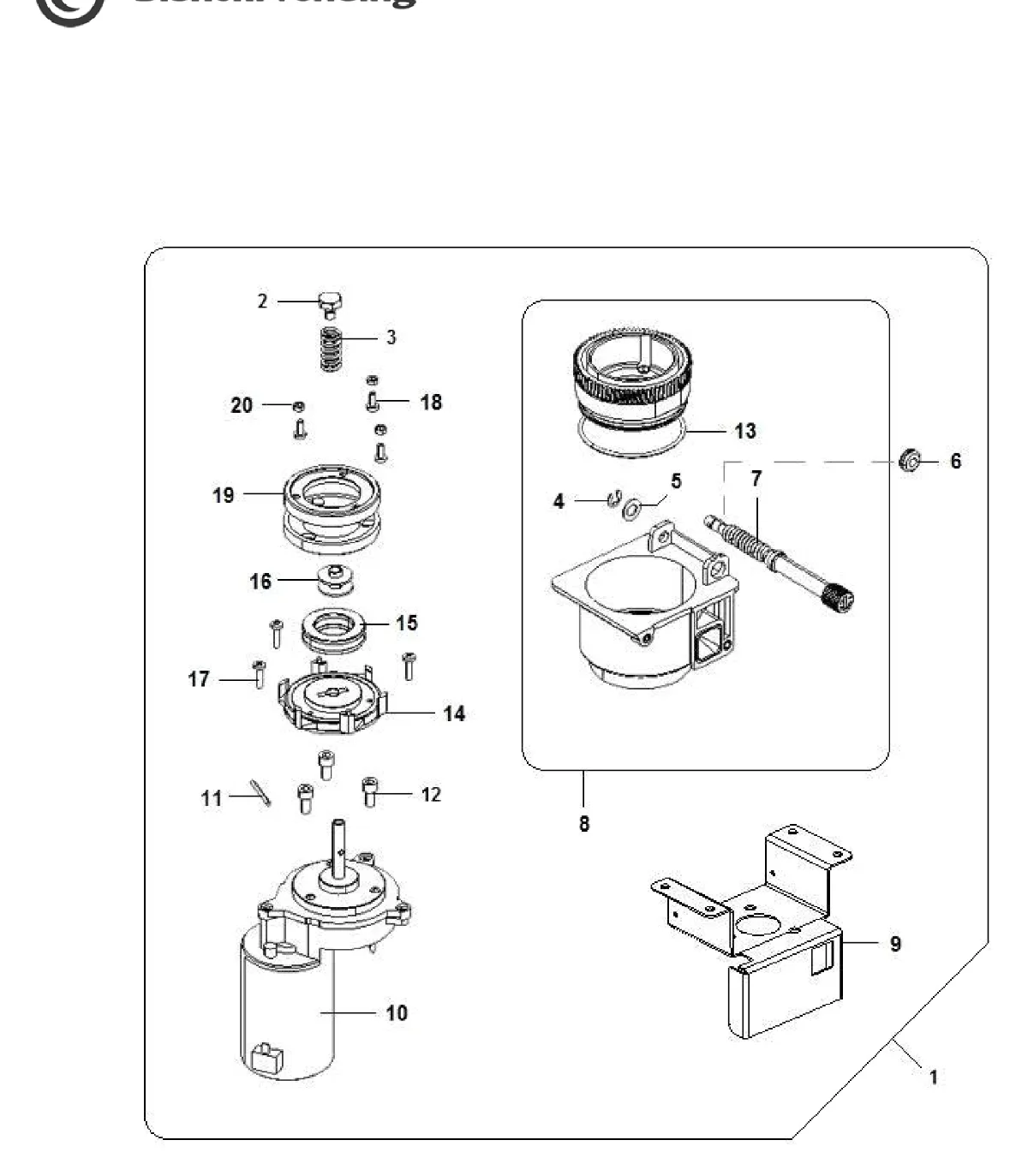

GRINDER ASSEMBLY (1355)
Lámina 6 de 26
Piezas de esta lámina
- 1 ASS.MACININO DX 12 DENT.BV303
- 2 screw for ametek spring
- 3 grinder holder spring
- 4 Ø 6 seeger ring
- 5 flat washer D.8,4*15,5*1,2
- 6 cable damper(6*15 - rubber)
- 7 POMOLO REGOLAZ.MACINATURA NERO
- 8 Black Grider chamber with with knob
- 9 LEI200 GRINDER SUPPORT PLATE
- 10 24VDC grinder Ametek gearmotor
- 11 wire D30x30
- 12 MA6X12 cross-headed embedded hexagon Zn
- 13 OR 66,35X2,62 FKM 75SH NERO
- 14 Mobile blade support
- 15 bearing
- 16 RONDELLA CON BUSSOLA #
- 17 Cross headed screw 4MA*16 IX
- 18 VITE TCC PG DIN 7985 INOX A2 M4X10 #
- 19 D=64 grinder blade 12teeth
- 20 4MA nut hexagonal

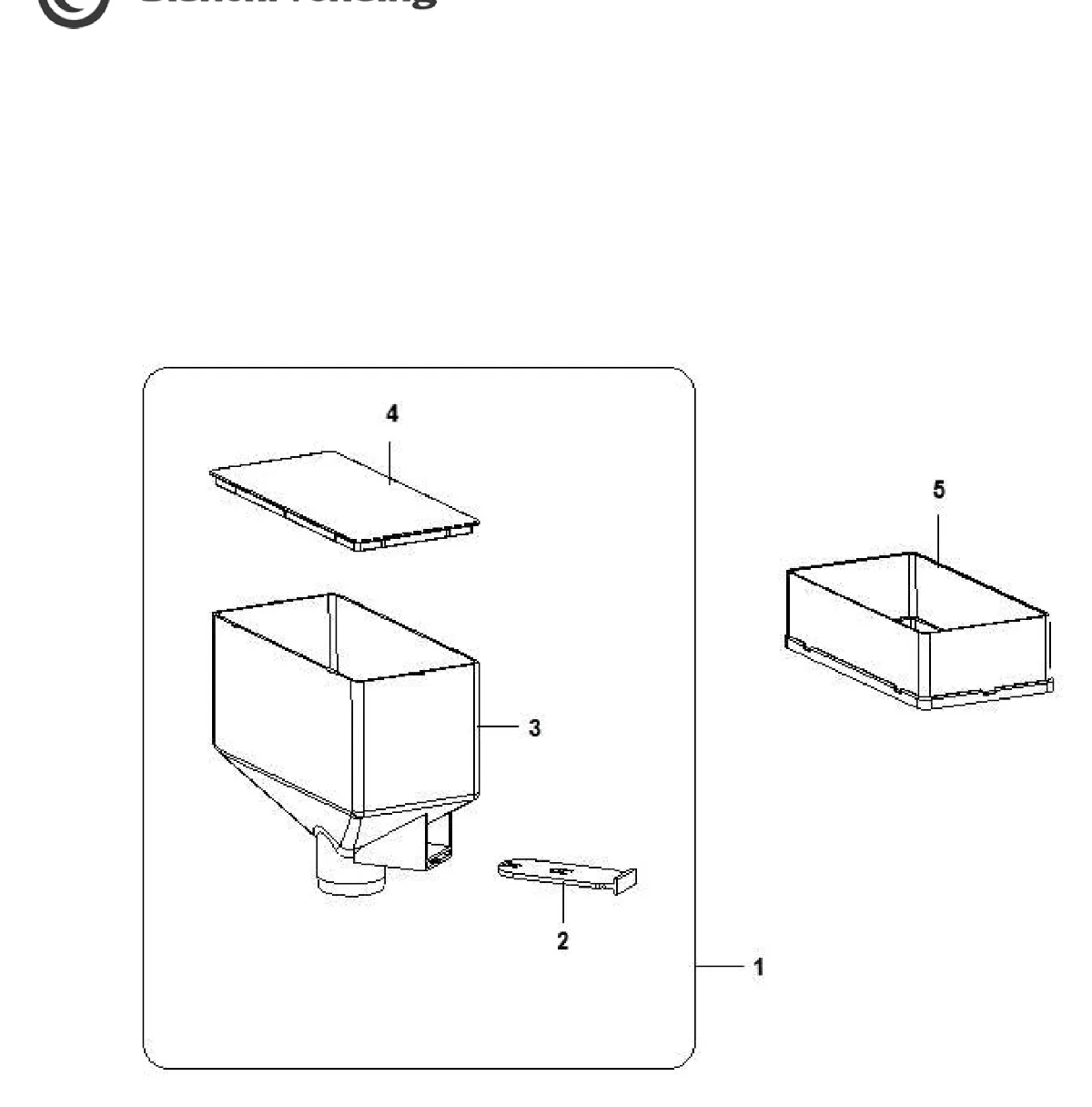

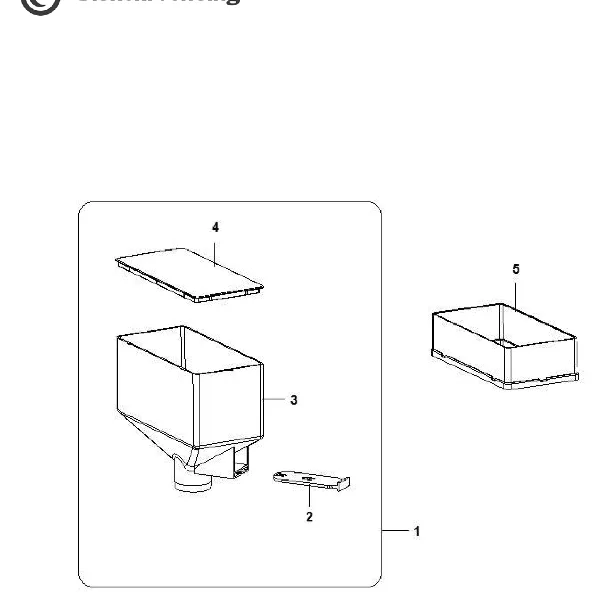

HOPPER ASSEMBLY (1356)
Lámina 7 de 26
Piezas de esta lámina
- 1 IRIS EX. coffe hopper assy
- 2 beans container door
- 3 TRAMOG.CAFFE IRIS E
- 4 right double canister cover sprint
- 5 LEI200 coffee container extension

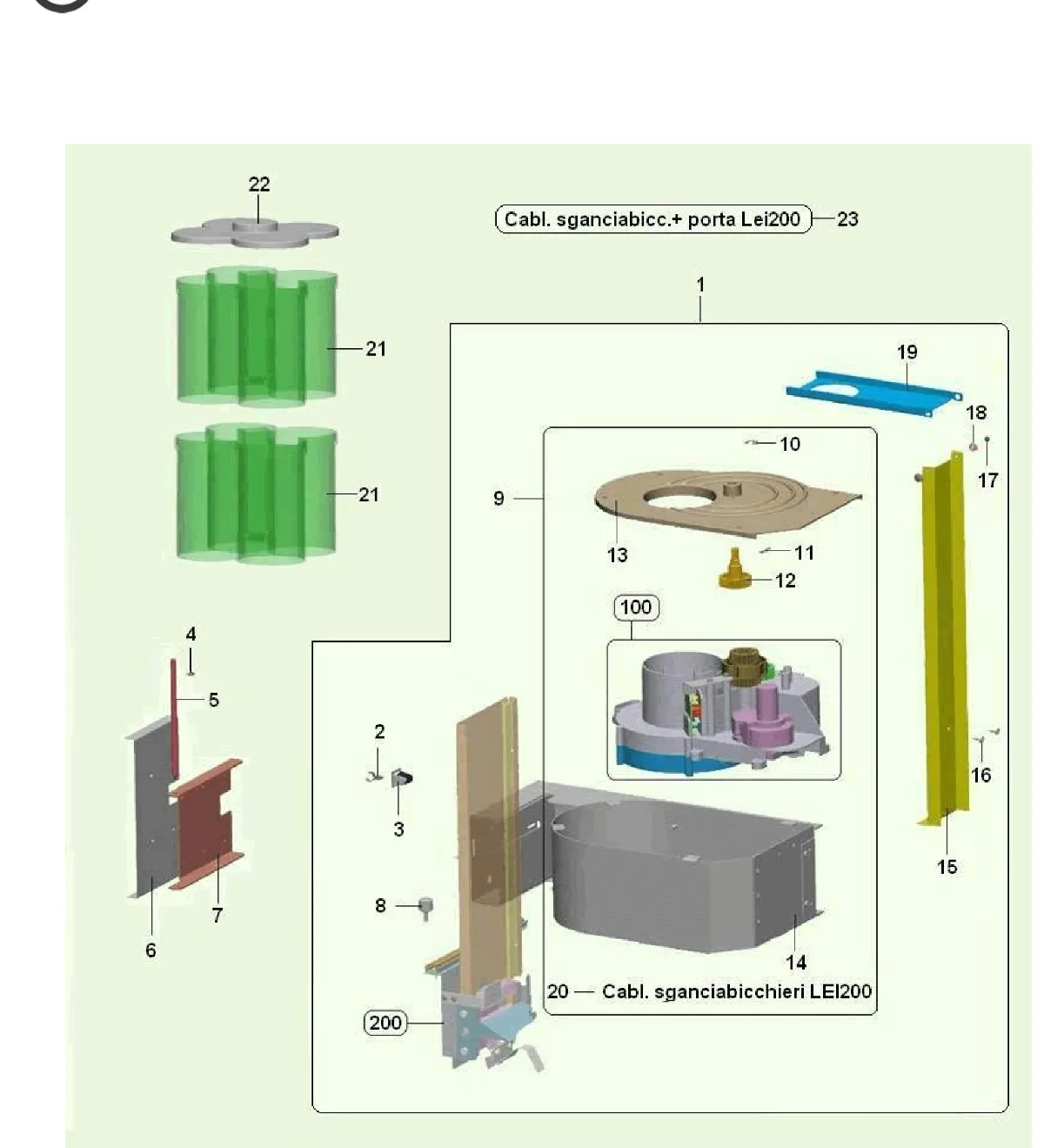

CUPS DISPENSER ASSEMBLY AND CUPS TURRET
Lámina 8 de 26
Piezas de esta lámina
- 1 C/O BRACCIO SGANCIAB/PALETTIER
- 2 Richco DCS-4 latch pin
- 3 Richco DCS-7 release spring
- 4 snap ring
- 5 PERNO ROTAZ. SGANCIA BICCHIERI LEI300
- 6 Fittings clamp support
- 7 Cups and spoons dispenser rotation plate
- 8 fixing knob
- 9 LEI200 cups dispenser assy
- 10 safety ring
- 11 Pin
- 12 Pinion movement cup turret
- 13 Iris brown cups turret cover
- 14 ASS.SUPP.SGANCIABECCH.LEI200
- 15 SUPP.VERT.COPERCH.SGANCIABICCH
- 16 VITE AFIL.TCC S/PDIN 7981 C15 3,9X9,5ZB
- 17 Steel rivet 3,2x6
- 18 rivet bush
- 19 SUPP.ORIZ.COPERCH.SGANCIABICCH
- 20 LEI200 cups dispenser cable
- 21 BV931 cups dispenser turret base
- 22 Black cups turret lid
- 23 CABL.SGANCIABICC.+PORTA LEI200

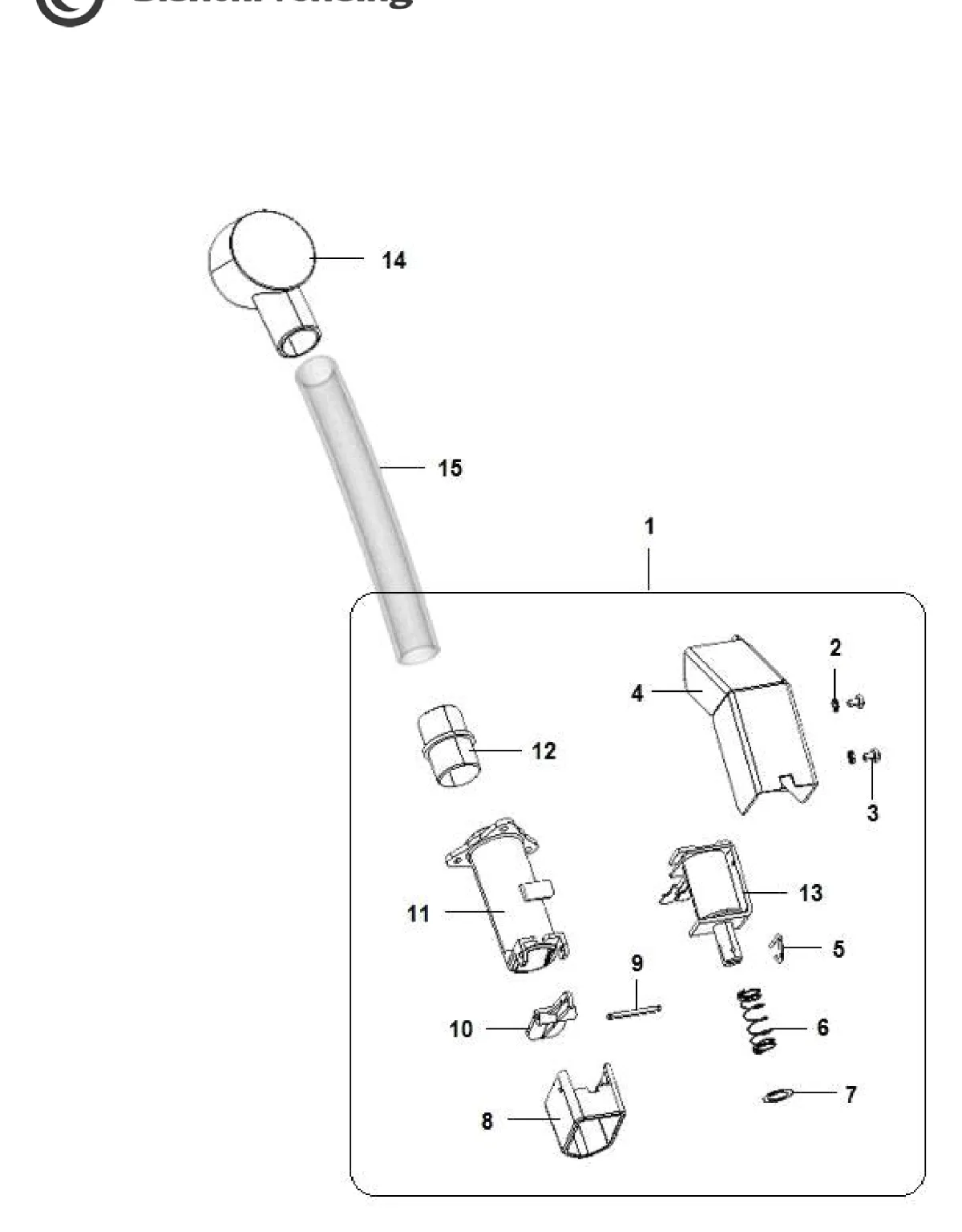

SUGAR DISPENSER ASSEMBLY (1358)
Lámina 9 de 26
Piezas de esta lámina
- 1 LEI200 sugar dispenser assy
- 2 self-locking diam.3.2
- 3 TC 3MAx5 screw
- 4 SUPP.EROGATORE ZUCCH.LEI200
- 5 electromagnet ring
- 6 sugar doser spring
- 7 Ø 9.2 plain washer
- 8 LEI200 sugar slide
- 9 lever's fulcrum pin
- 10 LEVA PER DOSATORE CON FORO #
- 11 FLANGIA EROG.ZUCCHERO NERO
- 12 sugar pipe connection
- 13 24V DC 15% magnet
- 14 LEI200 sugar slide connection
- 15 PVC pipe sect 20x26 FDA

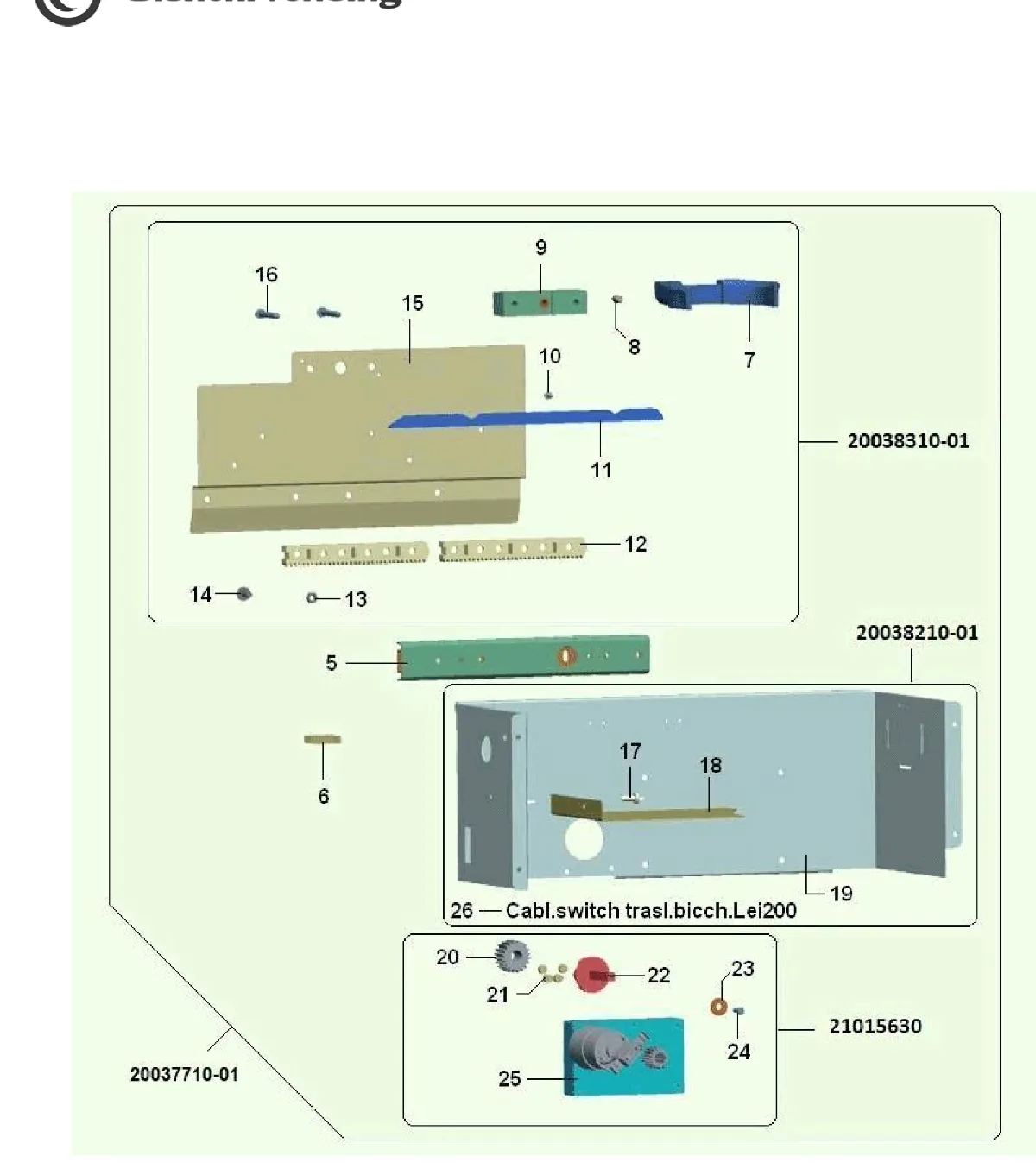

CUP MOTION ARM ASSEMBLY (1359)
Lámina 10 de 26
Piezas de esta lámina
- 5 L=182 sliding guide
- 6 Cable clips 15x18
- 7 CUPS BLACK FORK
- 8 5MAx10 hexagonal socket gr
- 9 Iris cup dispens. fork spacer
- 10 Blunt self-thread.screw2,9X6,5
- 11 CAMMA MOVIMENTO FORCELLA
- 12 cup movement rack iris
- 13 4MA hex nut
- 14 screw 4 MAx10
- 15 SUPP.FORCELLA LEI200
- 16 4,0X30 UNI9707 tapping screw
- 17 VITE AFIL.TCC S/PDIN 7981 C15 3,9X9,5ZB
- 18 COPERT.MOTORID.TRASLAT.LEI200
- 19 FASCIA VANO EROGAZIONE LEI200
- 20 Steel gear DP20 M1
- 21 Platin.cup station round magn.
- 22 LEI200 cup movement pivot pinion
- 23 plain washer Ø.4,3 ac.
- 24 screw 3*12 TCB 2F UNI9707
- 25 24V DC 40G/M w/cable w/varistore motor
- 26 LEI200 cups movement switch cable

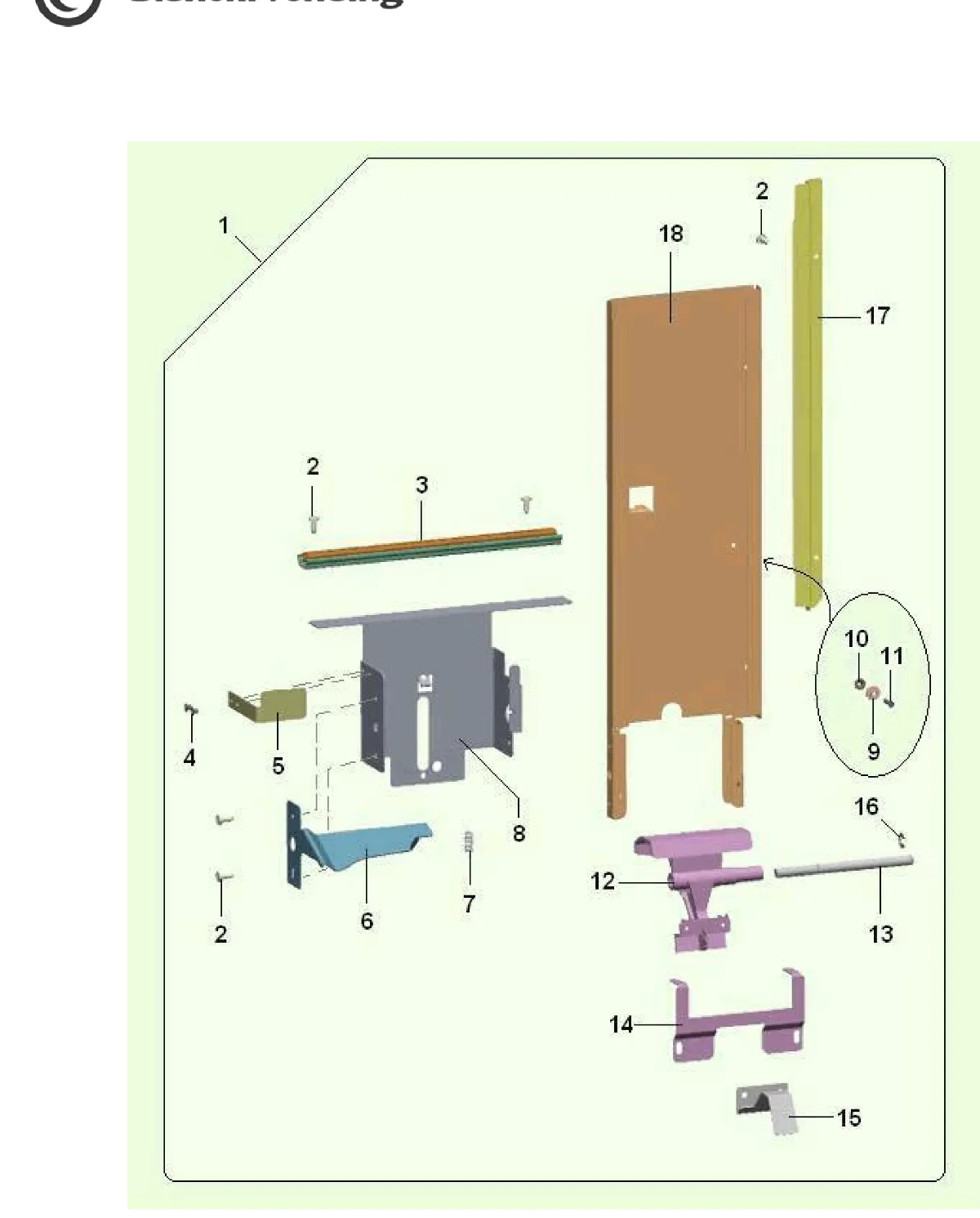

STIRRERS DISPENSER (1360)
Lámina 11 de 26
Piezas de esta lámina
- 1 LEI200 L90-105 spoon dispenser assy
- 2 VITE AFIL.TCC S/PDIN 7981 C15 3,9X9,5ZB
- 3 GUIDA SCORREVOLE L=182
- 4 Steel rivet 3,2x6
- 5 Pegaso spoons container supp.
- 6 spoons slide
- 7 spring
- 8 TELAIO DISTR.PALETTE LEI200
- 9 rivet bush
- 10 M3 hex. nut with washer
- 11 PRIG.M 3X12 PEM ZN
- 12 spoon ejector brown
- 13 spoons ejection shaft
- 14 spoons ejector correction plate
- 15 LEI200 spoon dispenser plate
- 16 Rusty rings UNI7434 HRC D.5
- 17 LEI200 spoon dispens. reduction panel
- 18 CONT.PALETTE LEI200 L=90-L=105

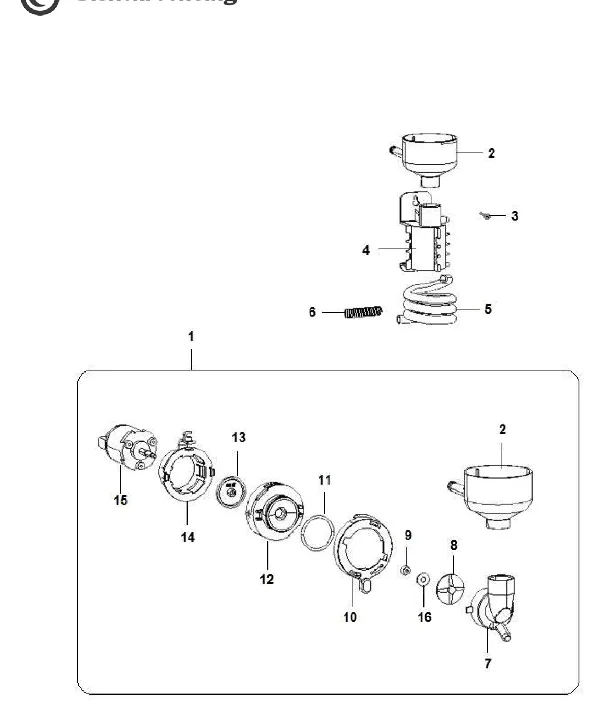

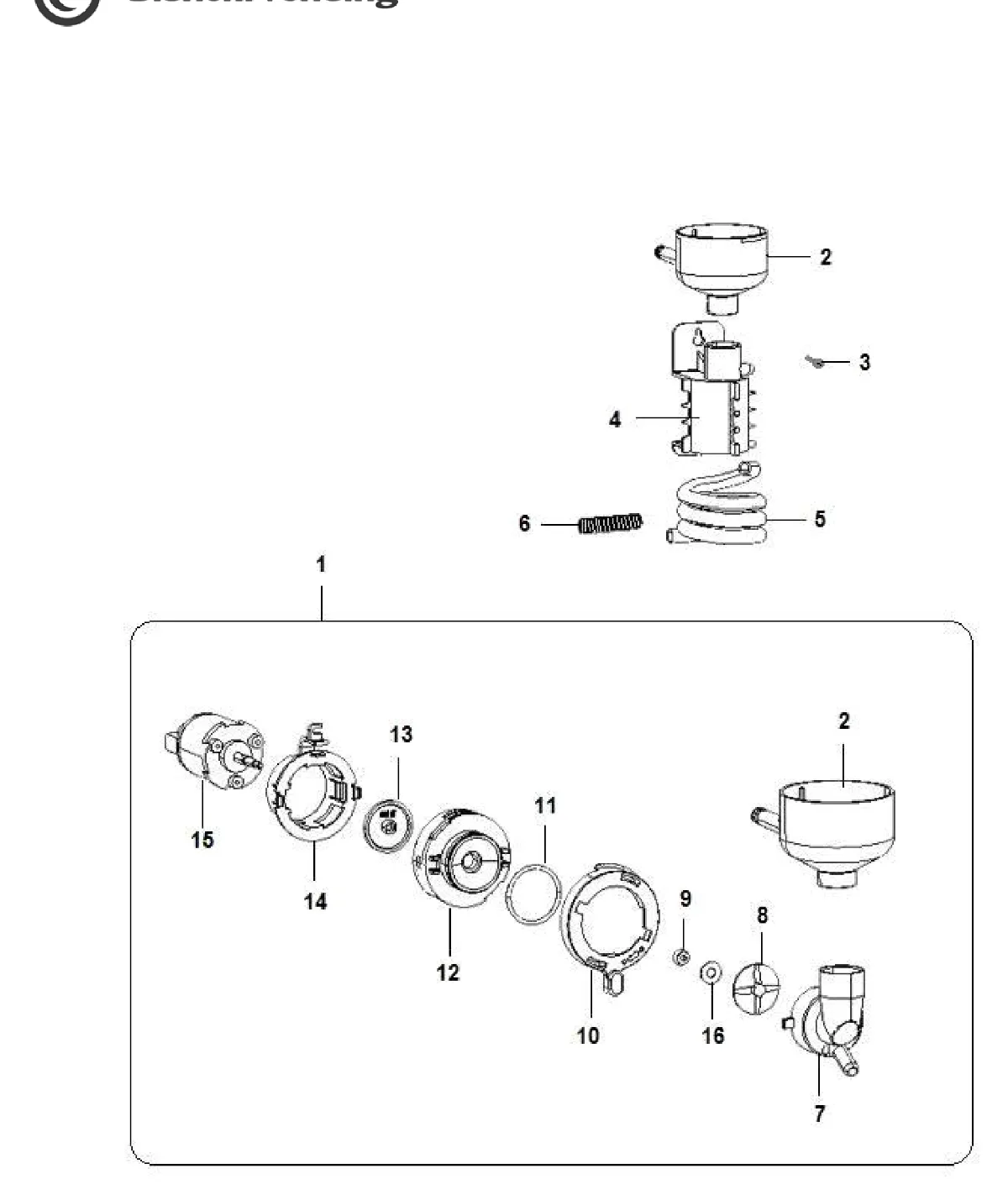

MIXER COMPONENTS (1362)
Lámina 12 de 26
Piezas de esta lámina
- 1 PH ASS.MIXER MTB S/COLLARE BV303 *
- 2 mixing bowl w/hole 5,7 brown
- 3 VITE AFIL.TCC S/PDIN 7981 C15 3,9X9,5ZB
- 4 Brown tea serpentine support
- 5 TUBO SIL.SZ.7X11 NERO
- 6 tea serpent. spring
- 7 CAMERA MISCELAZ.NERO
- 8 mixer impeller
- 9 WRING gasket. Hole diam=4. Lip=10
- 10 FLANGIA BLOCCAGGIO CAMERA NERA
- 11 Black OR 32,99X2,62 FKM 75SH
- 12 Black chamber support flange
- 13 DISCO PROTEZ.MOTOFR. NERO
- 14 FLANGIA SUPPORTO MOTORE NERA
- 15 24VDC mixermotor w/o cable
- 16 level ground washer Ø 4.3 IX

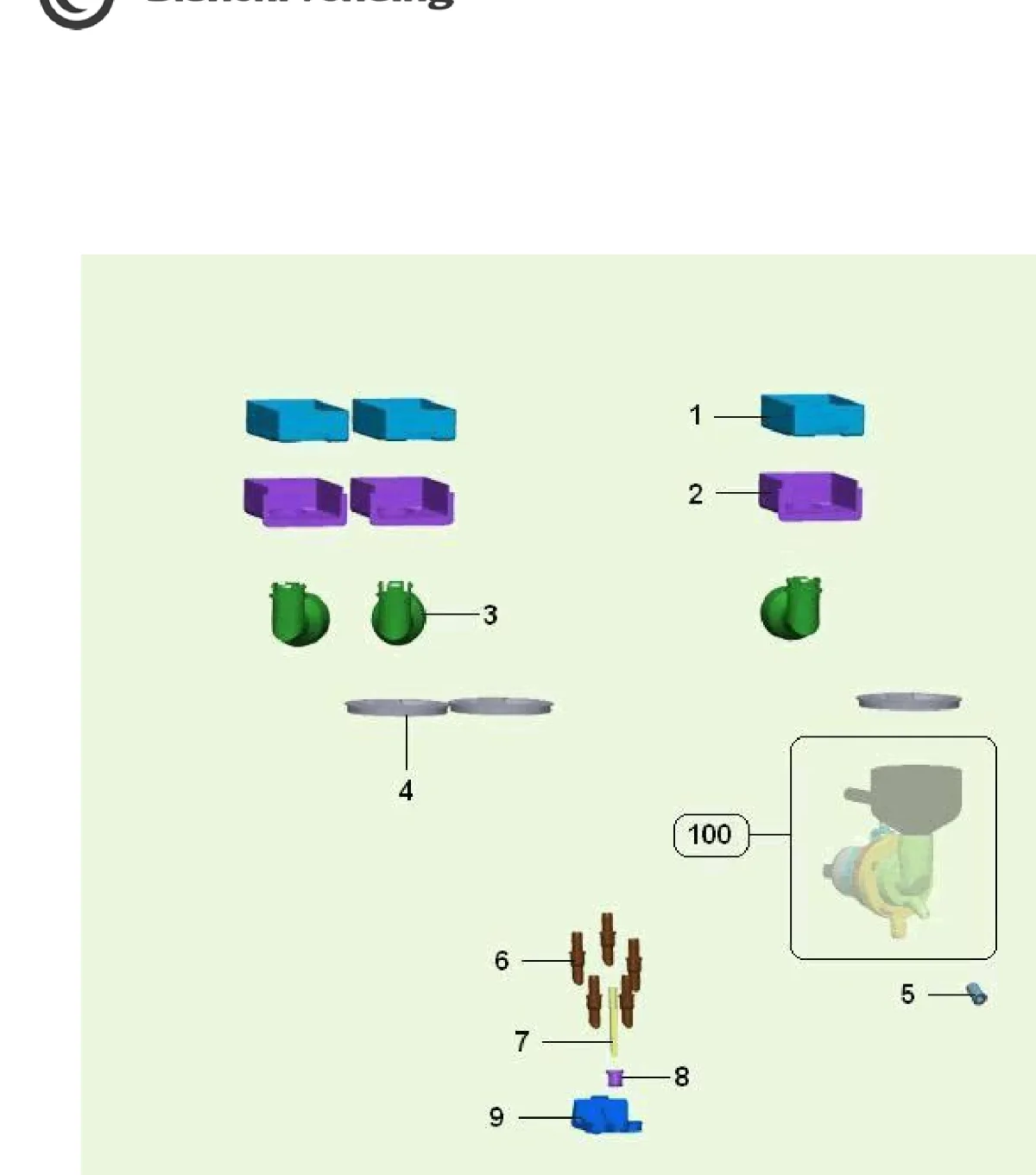

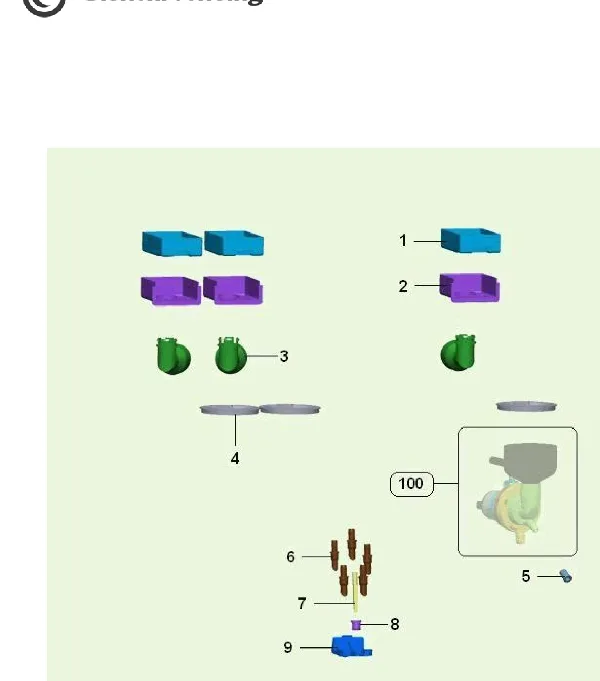

INSTANT PRODUCTS COMPLETION PARTS (1363)
Lámina 13 de 26
Piezas de esta lámina
- 1 CASSETTO ASPIRAZIONE NERO
- 2 CAMERA CASS.ASPIRAZIONE NERO
- 3 Suction pipe joint
- 4 COLLARE COPP-MISC.SPRINT NERO
- 5 MILK FLOW REDUCTOR BVM302
- 6 BECCUCCIO EROGAZIONE Ø5.5 mm NERO
- 7 UGELLO CAPILLARE L=48 NERO
- 8 BV931 pipe nozzle bush
- 9 Black dispending nozzle support flange

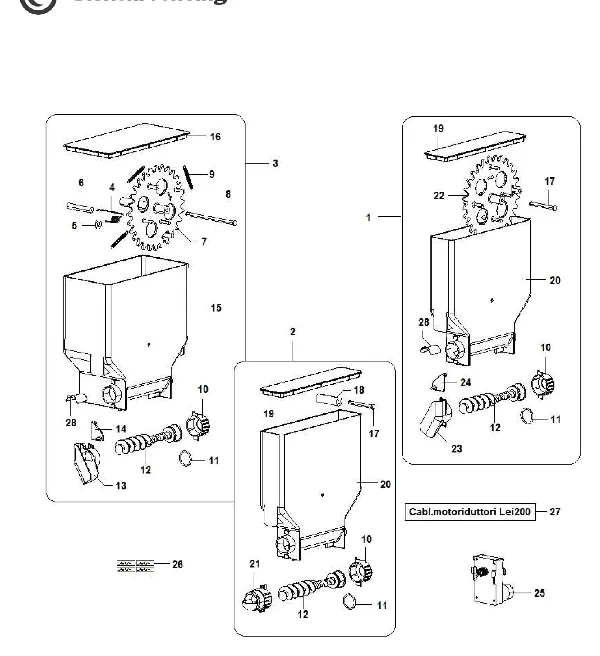

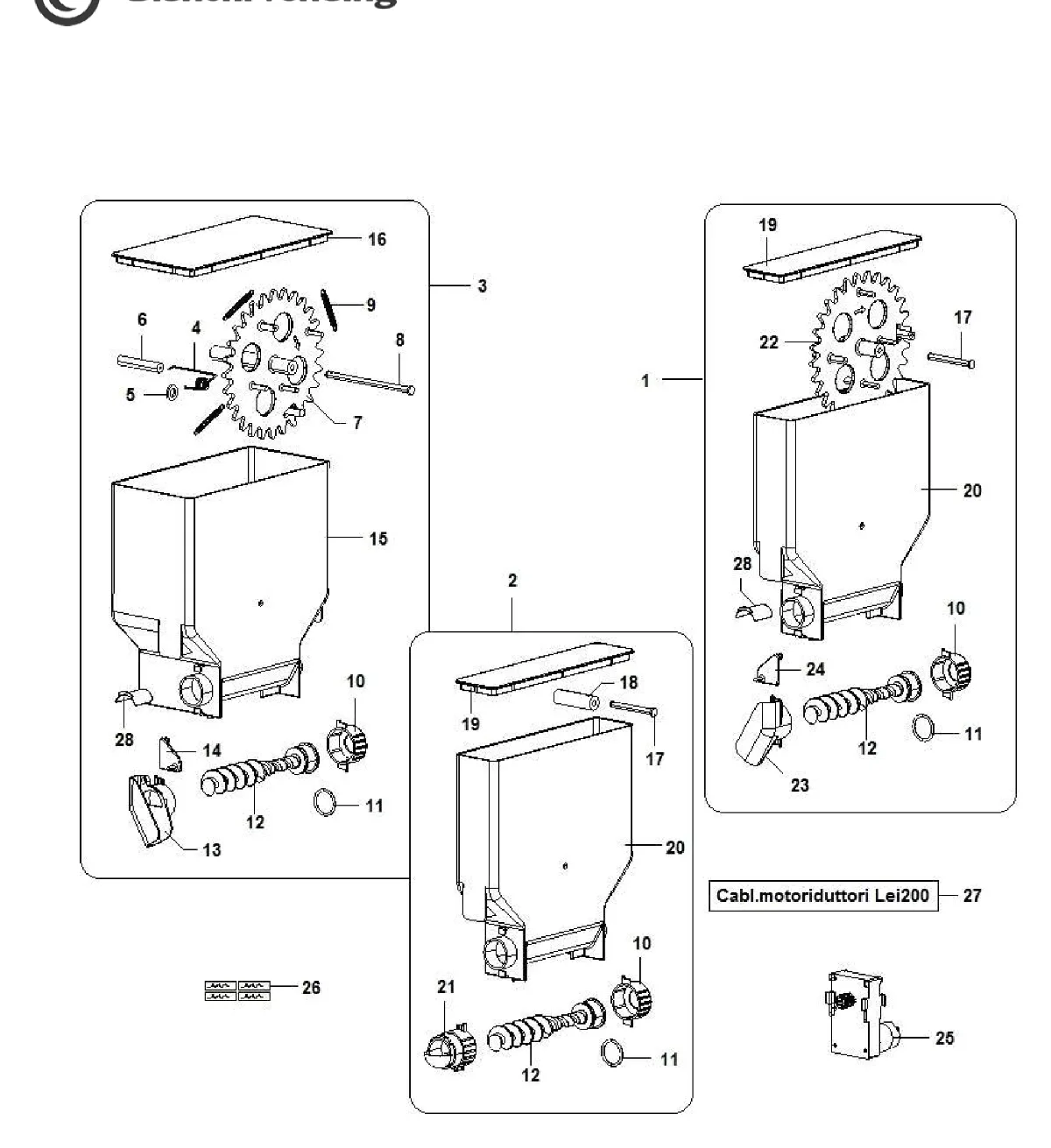

DOSER BOXES ASSEMBLY (1364)
Lámina 14 de 26
Piezas de esta lámina
- 1 Iris LT single canister assy
- 2 Sugar canister assy
- 3 C/O SC-DOS-D DX IRIS
- 4 canister(double wheel) agitator spring
- 5 plane washer
- 6 Double canister spacer
- 7 Cog-wheel for double dispenser
- 8 pin for double prod.canister Sprint
- 9 Canister L.52 w/2 holes agitator spring
- 10 lock for disp.canist.auger sprint
- 11 OR 23,47X2,62 NBR 70SH ACS
- 12 extracting auger for canister
- 13 right slide
- 14 right slide cap
- 15 RIGHT DOUBLE CANISTER
- 16 right double canister cover sprint
- 17 pin for product canister Sprint
- 18 sugarcanister spacer
- 19 Left canister cover sprint
- 20 Single right canister
- 21 iris dispencing nozzle
- 22 RUOTA DENT.SC-DOS-S SPRINT
- 23 left slide
- 24 left slide cap
- 25 24V DC motor quick connect.
- 26 iris product canister stickers
- 27 CABL.MOTORIDUTTORI LEI200
- 28 Powders exit protection

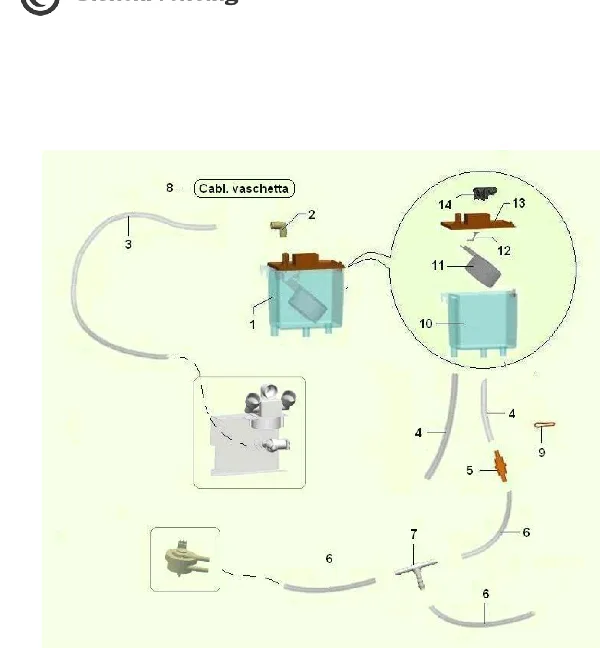

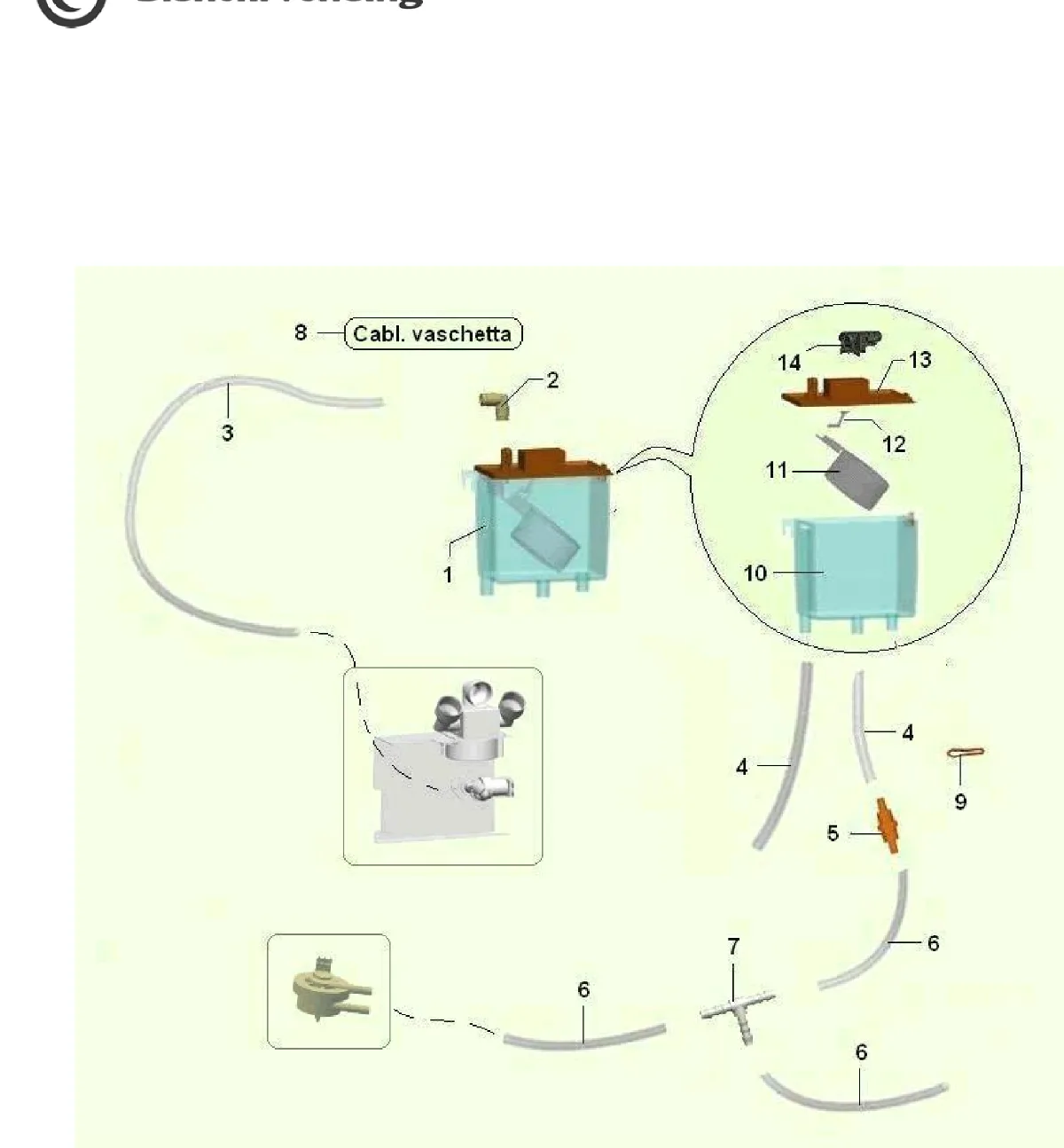

WATER BASIN & CONNECTIONS (1366)
Lámina 15 de 26
Piezas de esta lámina
- 1 VASCH.ACQUA C/VALVOLA A GALL.1 MICRO $
- 2 2 elbows connection w/quick conn. Diam.6
- 3 TUBO PTFE 6x4 CALIBRATO Pmax 68BAR #
- 4 TUBO SIL.SZ.8X12 TRASPARENTE OPACO
- 5 water filter
- 6 5x9 transparent silicone pipe
- 7 T4 junction
- 8 BVM952 ES. tray cable
- 9 clapper
- 10 SERBATOIO VASCHETTA X 93012010
- 11 floater+support for 93012010 air-break
- 12 cam for airbreak cod93012010
- 13 Water tray cover with joint
- 14 Micro SW1 plate X 9301203

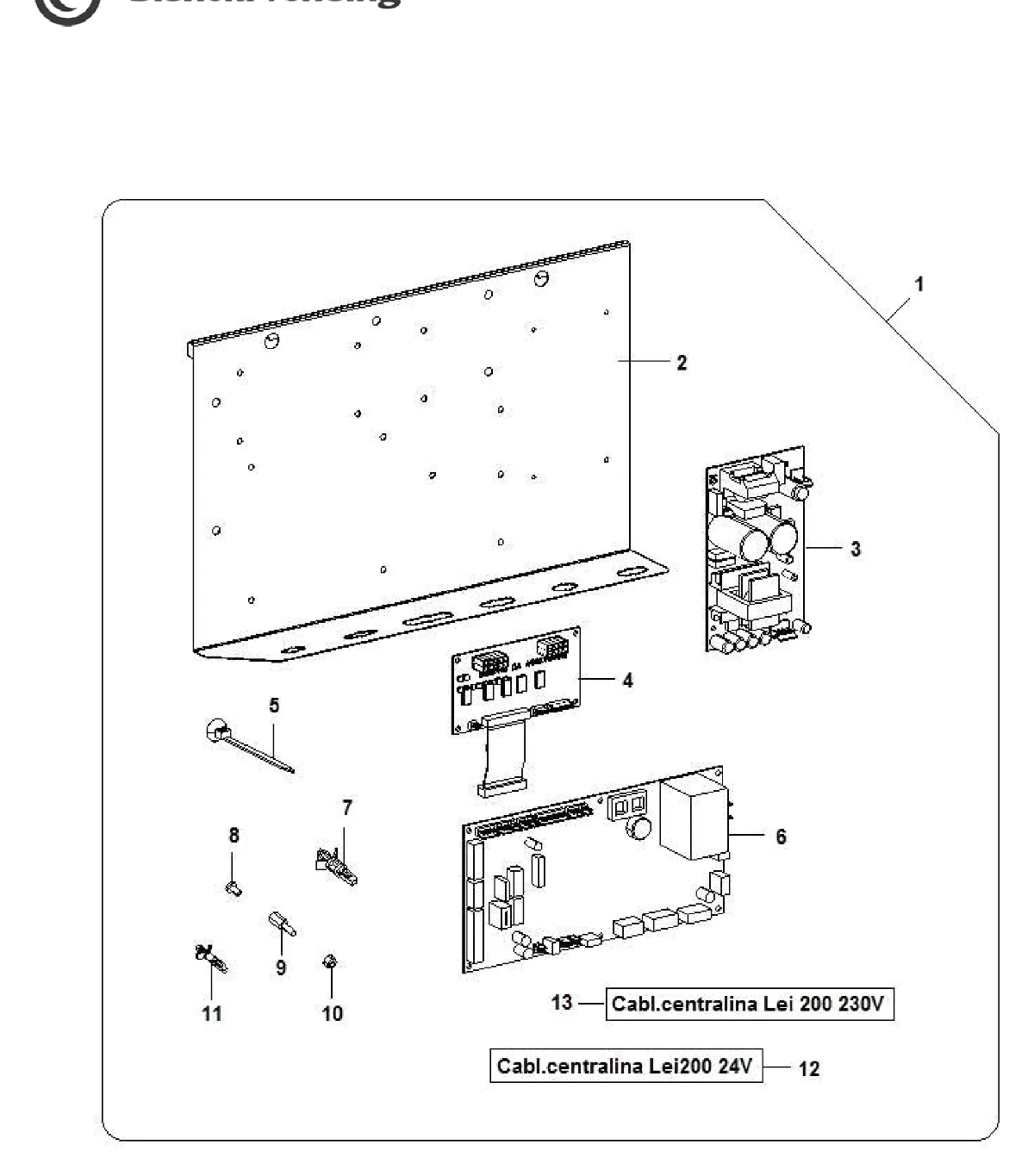

LEI 200 MC BOARDS ASSEMBLY (1368)
Lámina 16 de 26
Piezas de esta lámina
- 1 ASSIEME SCHEDE LEI200 MC
- 2 SUPP.SCHEDE LEI200
- 3 switch powersupply24V120W/360W
- 4 LEI200 MB expansion board
- 5 plastic strip with connection
- 6 SCHEDA MICRO/POTENZA SF0506CA05
- 7 board spacer
- 8 Cross headed screw 3MAX6
- 9 Metal spacer M/F/ M3L.
- 10 3MA selft-locking nut
- 11 PLASTIC SPACER M/F M3 L.7,9
- 12 LEI200 24V switch box cable
- 13 CABL CENTRALINA LEI 200 230V

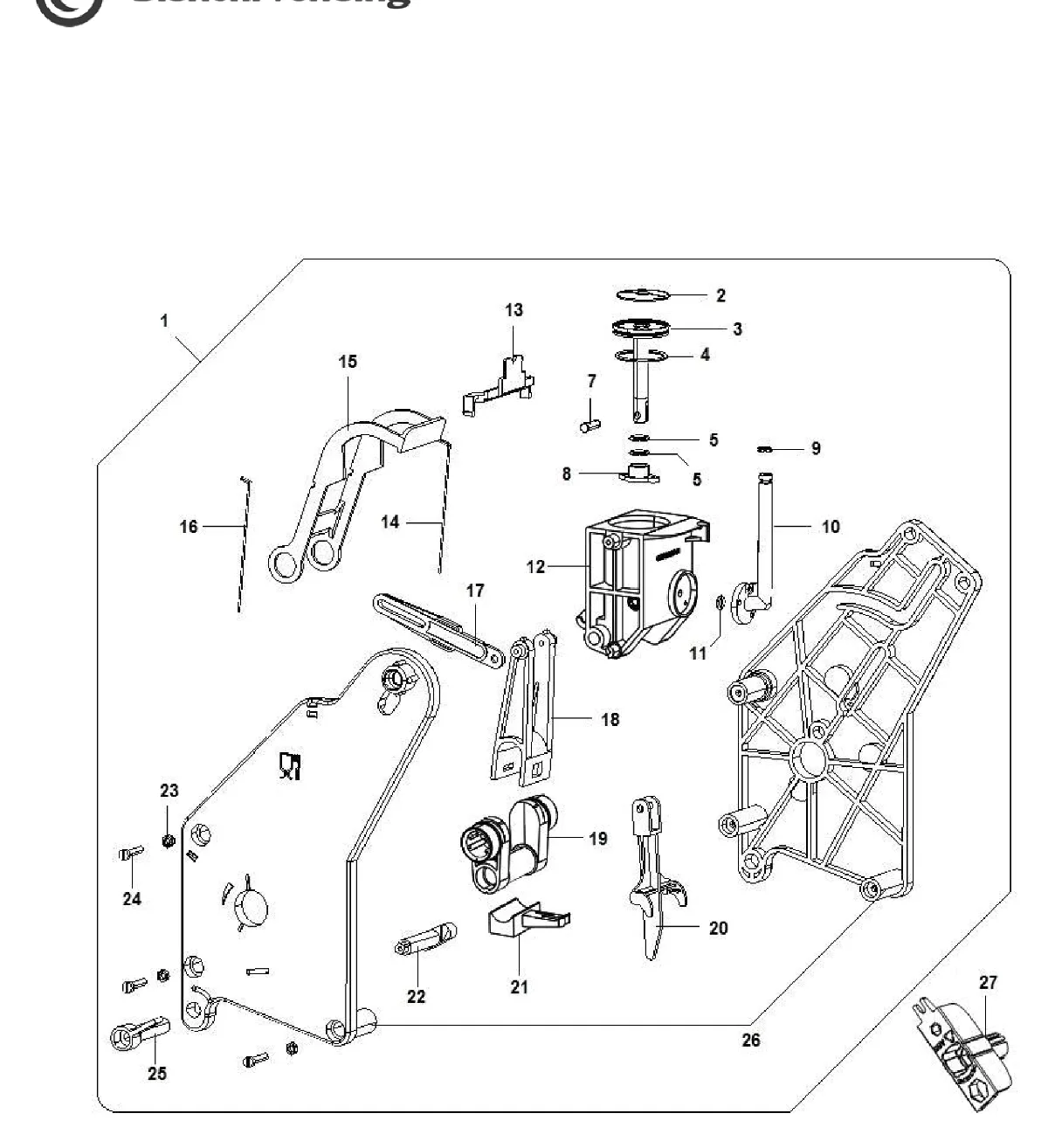

BLCK PLS COFFEE GROUP (1422)
Lámina 17 de 26
Piezas de esta lámina
- 1 Black plastic anti-limescale coffee grou
- 2 coffee group filter
- 3 Grounds expulsion mast
- 4 Joint 2118 SH70 VITON
- 5 OR 9,25X1,78 FKM 75 SH NERO
- 7 Black DS coffee group rivet
- 8 Black DS coffee-group cup bush
- 9 o-ring for cooffe group pipe
- 10 Black DS Coffee-group cup tube
- 11 OR 5,28X1,78 FKM 75SH NERO
- 12 BICCHIERINO GR-CAFFE DB NERO
- 13 SPACER FOR BLACK DS COFFEE GROUP SIDES
- 14 left spatula spring
- 15 Black DS Coffee group spatula
- 16 right spatula spring
- 17 Black DS Coffe group drive rod
- 18 Coffee group connecting rod
- 19 MANOVELLA GR-CAFFE CON CAMMA
- 20 Black coffee group rod lifter
- 21 STAFFA GRUPPO CAFFE
- 22 Black DS Coffe group locking rod
- 23 4MA nut hexagonal
- 24 VITE TCC PG DIN 7985 INOX A2 M 4 X 20
- 25 Black DS coffee group locking lever
- 26 front/rear shoulder assembly w/knob
- 27 CHIAVE ROTAZIONE GRUPPO CAFFE’

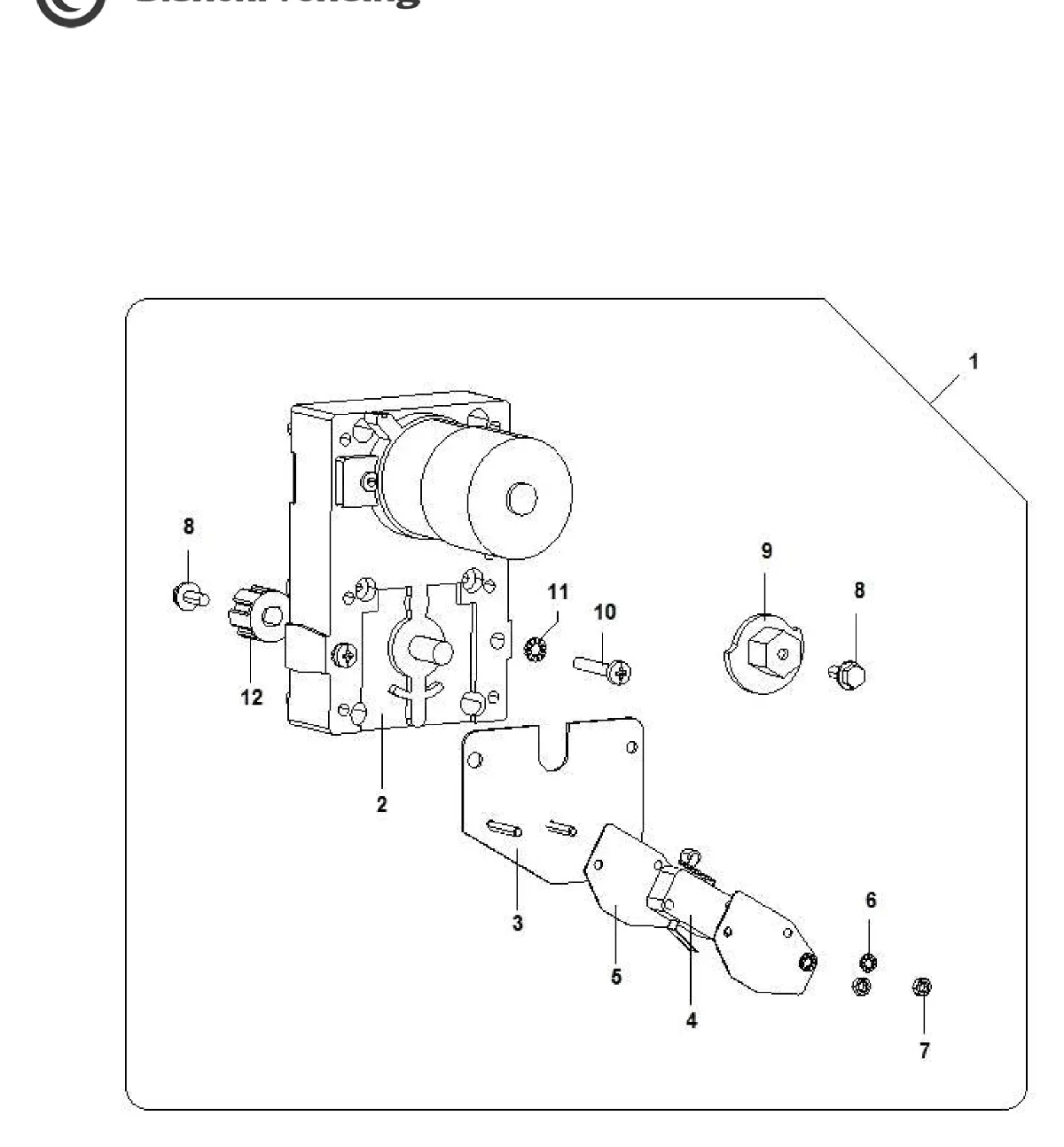

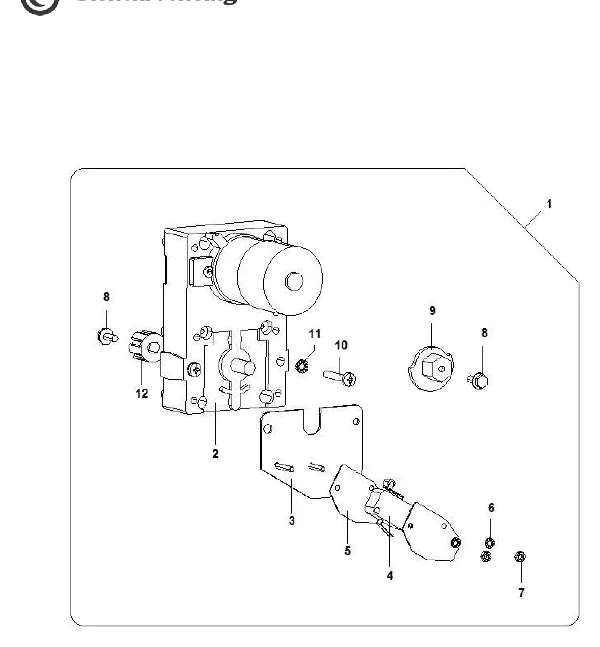

GEARMOTOR COFFEE GROUP (483)
Lámina 18 de 26
Piezas de esta lámina
- 1 Motor assy w-out/24V cable coffee group
- 2 24VDC12rpm cof.group gearmotor
- 3 bracket for micro
- 4 microswitch with wheel
- 5 ISOLANTE PER MICRO
- 6 self-locking diam.3.2
- 7 M3 hexagonal nut
- 8 screw 4 MAx10
- 9 black rotating group cam
- 10 4M x 25 screw
- 11 d. 4,2 IX self locking washer
- 12 PLASTIC JOINT COFFE GROUP

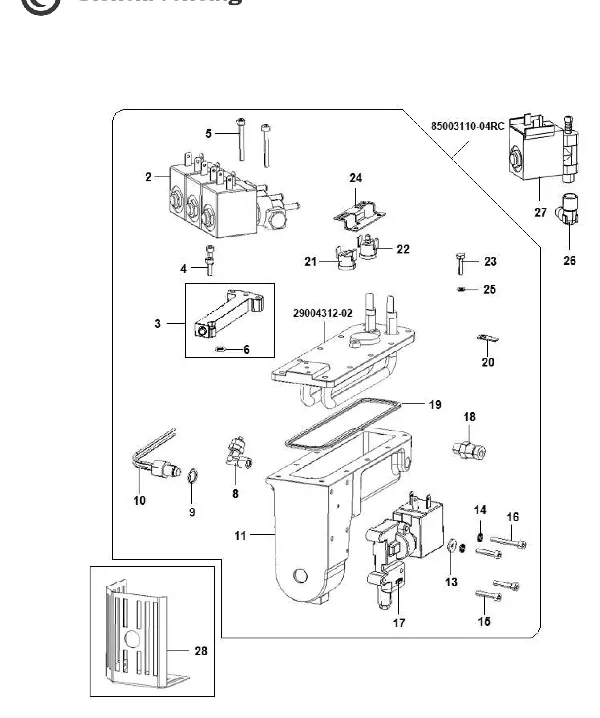

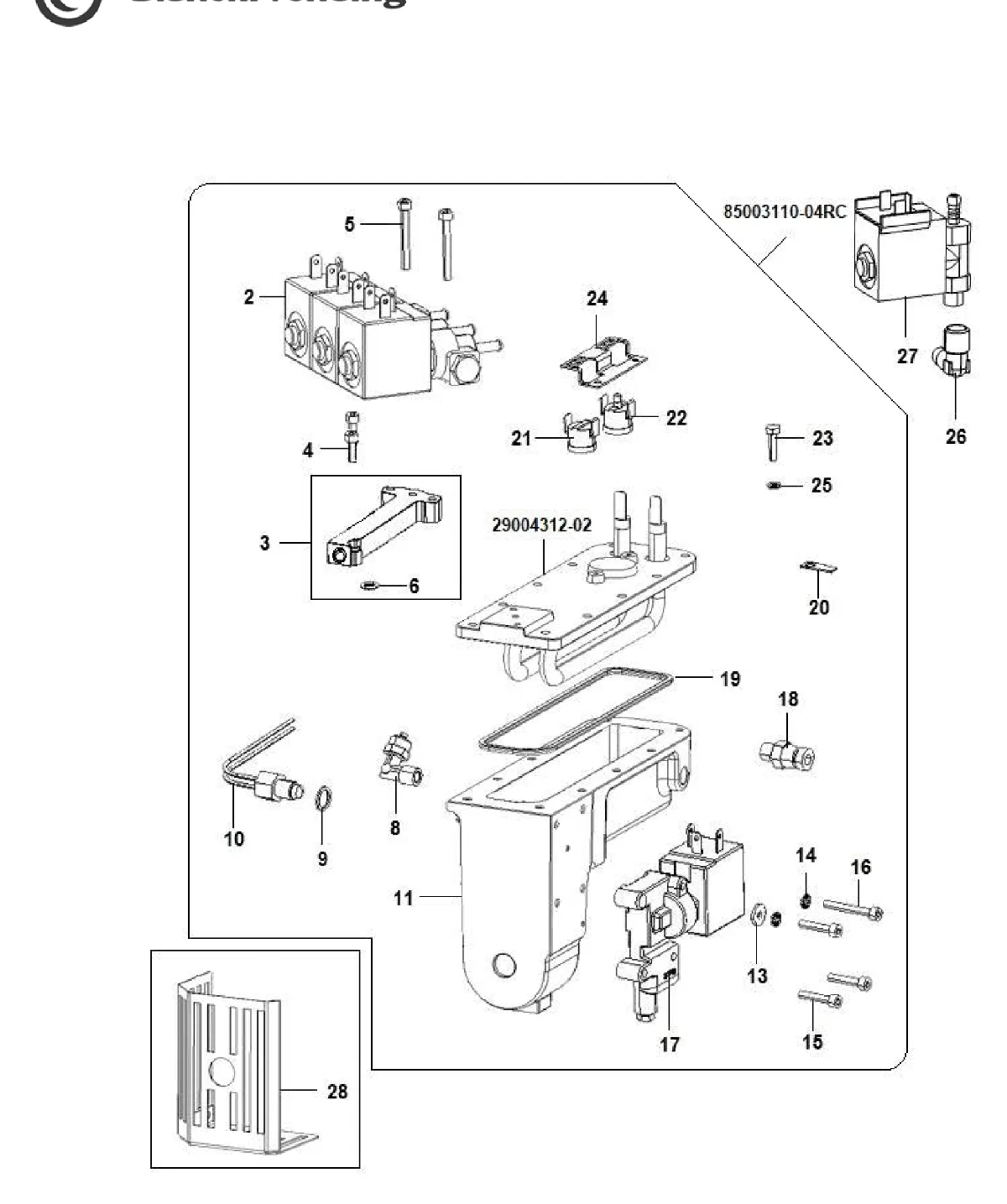

ESPRESSO BOILER COMPONENTS (2054)
Lámina 19 de 26
Piezas de esta lámina
- 2 BLOC.3EV 2VIE DN2 24VDC OT57-TM3
- 3 ASS.BLOCCH.EL-VAL. OT57-TM4+TAPPO M5+OR
- 4 4x12 screw
- 5 TCEI 4MAx35 screw
- 6 O-RING 2025 VITON #
- 8 ELBOW CONNEC. 1/8M GAS PIPE 6/4 DEP
- 9 copper gasket
- 10 Temp.sens. w/connector (inox)
- 11 CORPO CALDAIA ESPRESSO OT57-TM3
- 13 plain washer Ø.4,3 ac.
- 14 d. 4,2 IX self locking washer
- 15 TCEI 4MAx20 screw
- 16 4MAX30 screw
- 17 ELV 3VIE 24V DN=1.5 TM1+OR 2025 VITON
- 18 VALV.DI SCARICO + OR 1/8 GA #
- 19 GUARNIZIONE CALDAIA ESPRESSO
- 20 male tab
- 21 automatic recharge clixon110°
- 22 manual recharge clixon (135°)
- 23 TCEI 4MAx16 screw
- 24 Thermoregulator spring
- 25 washer
- 26 ART.458 1/8-1/8 DEP F/M L connection
- 27 EL-VALV.2VIE 24V.DC.C/RACC-OT58/TM4
- 28 boiler cover BV303/901

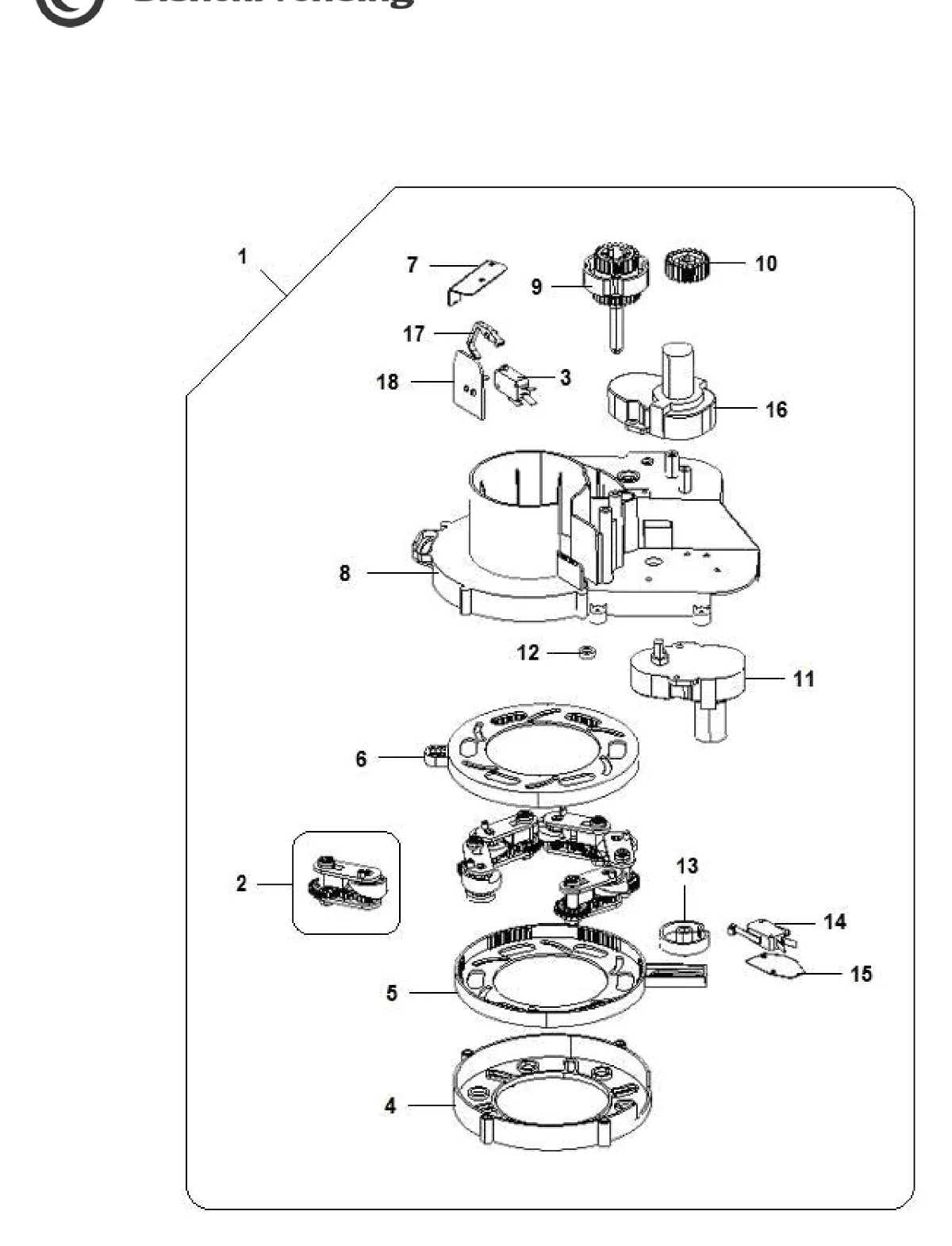

ASSEMBLY BODY CUP DISPENSER (704)
Lámina 20 de 26
Piezas de esta lámina
- 1 ASS.SGANC.BICCHIERI IRIS
- 2 CUP DISPENSER COCHLEA ASSY
- 3 10gr VRSRCMDA1-ers 16 micro w/out lever
- 4 COPERCHIO INF.SG-BIC.NERO
- 5 GHIERA ESPULS.BICCHIERI NERO
- 6 cup diam.regulation ring brown
- 7 SQUAD.SUPP.MICRO SG-BIC
- 8 upper cover c/pop brown
- 9 iris cup turret movement cam
- 10 Motor pinion iris cup disp.
- 11 24V DC 2,2nF 100V w/varistore motor
- 12 Cups dispenser rotation bear
- 13 ring movement cam
- 14 microswitch with wheel
- 15 ISOLANTE PER MICRO
- 16 24VDC 12RPM 2,2nF 100V gearmotor
- 17 cup presence sensor
- 18 SUPP.MICRO SG-BICCH.NERO

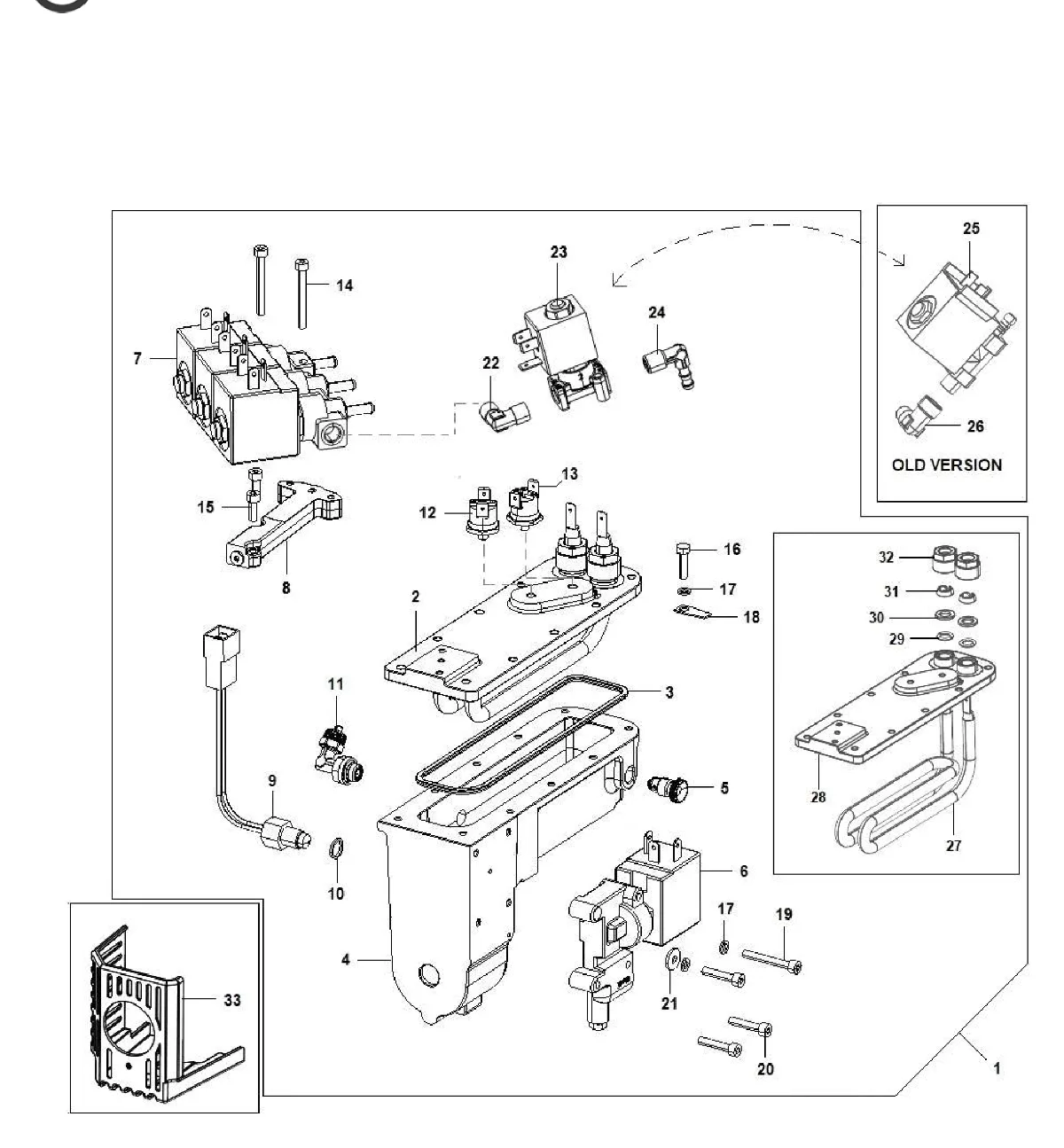

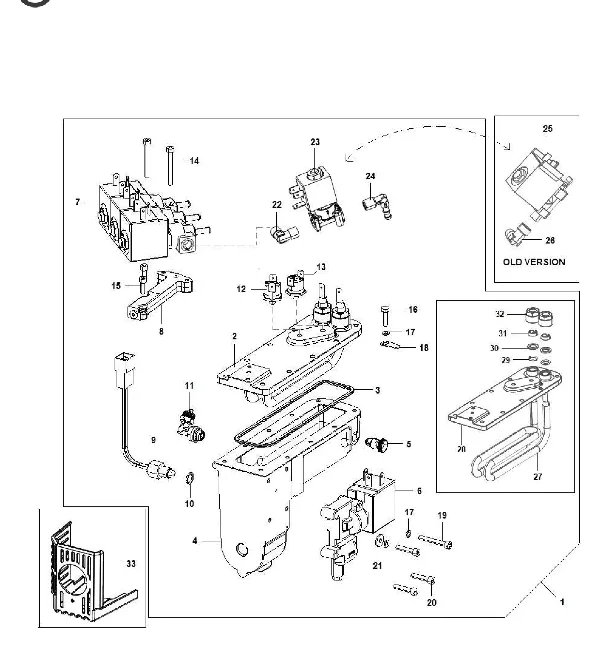

ESPRESSO BOILER ASSEMBLY + 4
Lámina 21 de 26
Piezas de esta lámina
- 1 ASS. CALDAIA ESP 230V+4 EV SOLUBILE
- 2 230 V White insulating Dismantled resist
- 3 GUARNIZIONE CALDAIA ESPRESSO
- 4 CORPO CALDAIA ESPRESSO OT57-TM3
- 5 ASS.VALV. SCARICO CALDAIA 1/8M OT58-TM4
- 6 ELV 3VIE 24V DN=1.5 TM1+OR 2025 VITON
- 7 BLOC.3EV 2VIE DN2 24VDC OT57-TM3
- 8 ASS.BLOCCH.EL-VAL. OT57-TM4+TAPPO M5+OR
- 9 Temp.sens. w/connector (inox)
- 10 copper gasket
- 11 RACC. GIREV. A CALZ. Ø6xØ4-FM G1/8-TM4
- 12 automatic recharge clixon110°
- 13 CLIXON 135° C RIARMO MANUALE C/FIL.M5
- 14 TCEI 4MAx35 screw
- 15 4x12 screw
- 16 TCEI 4MAx16 screw
- 17 washer
- 18 male tab
- 19 4MAX30 screw
- 20 TCEI 4MAx20 screw
- 21 plain washer Ø.4,3 ac.
- 22 RAC.GOM.1/8M-1/8MxTUBOØ6A459-OT58-TM4
- 23 EV2/2 IE Ø2 NC 1/8"F G 24VDC10W-OT58-TM4
- 24 RACC. ANG. 1/8MCON-PG Ø6.5-OT58-TM4 #
- 25 EL-VALV.2VIE 24V.DC.C/RACC-OT58/TM4
- 26 ART.458 1/8-1/8 DEP F/M L connection
- 27 RESIS.1500W230V SMON.CALD.ES ISOL.BIAN #
- 28 FLANGIA RESIST.C/ATTACC.FILETT #
- 29 OR 8 X 1,9 VITON ALIM #
- 30 RONDELLA SPECIALE X RESISTENZA
- 31 Resistance capacity ring
- 32 DADO DI FISS.RESISTENZA
- 33 COPERTURA CALDAIA ES/ESV PA GF

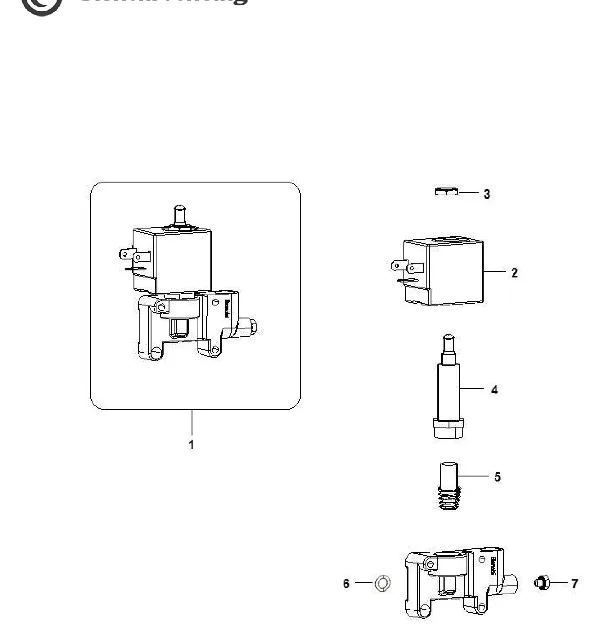

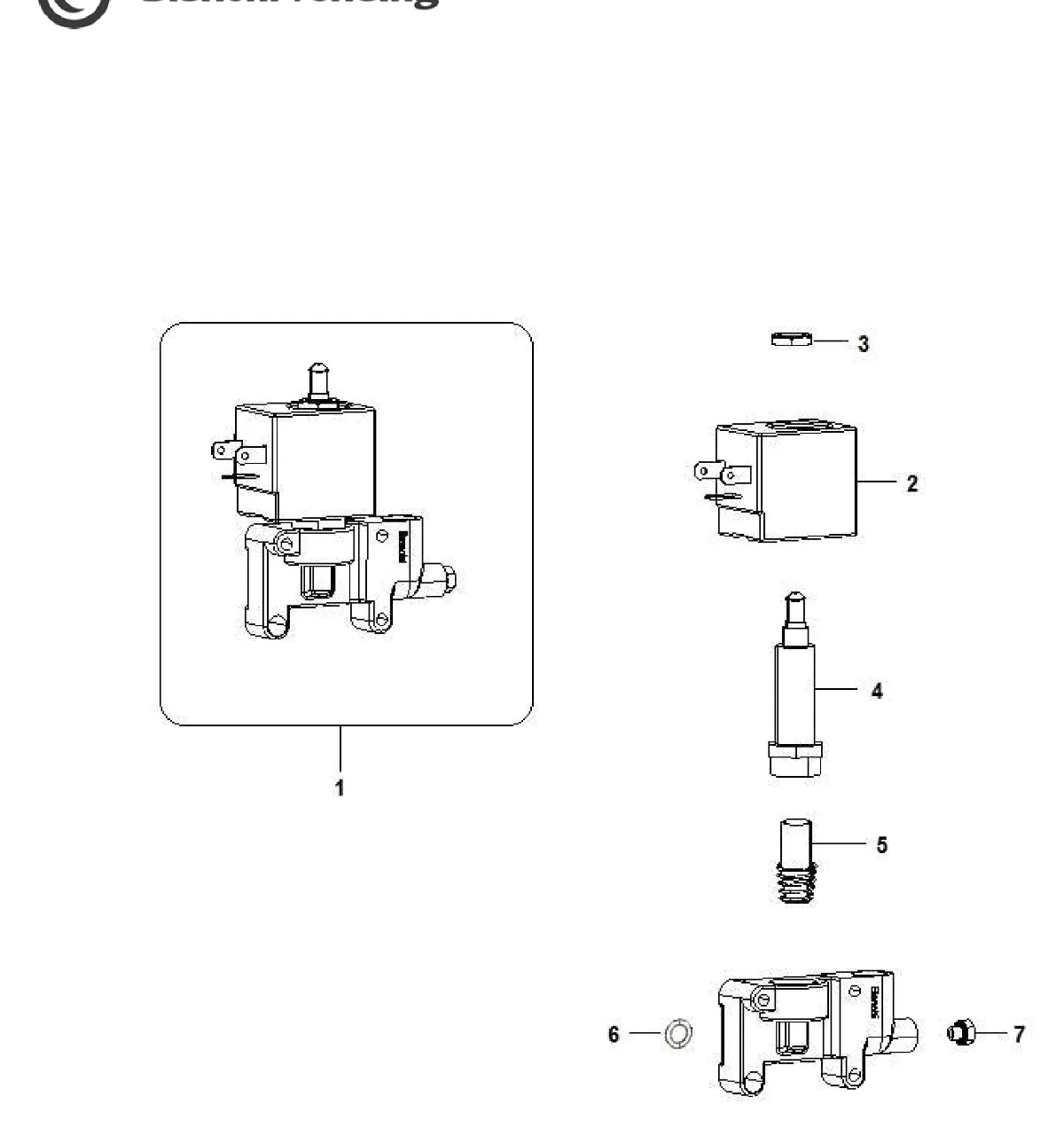

COMPONENTS EL-VALV. 3 VIE OLAB (930)
Lámina 22 de 26
Piezas de esta lámina
- 1 ELV 3VIE 24V DN=1.5 TM1+OR 2025 VITON
- 2 electrovalve coil 25019416
- 3 Coil locking nut
- 4 OLAB armature tube 3W
- 5 PLUNGER OLAB TYPE 3 VIE
- 6 9,63x6,07 o-ring viton
- 7 Body cover 452/A + ORM viton gasket

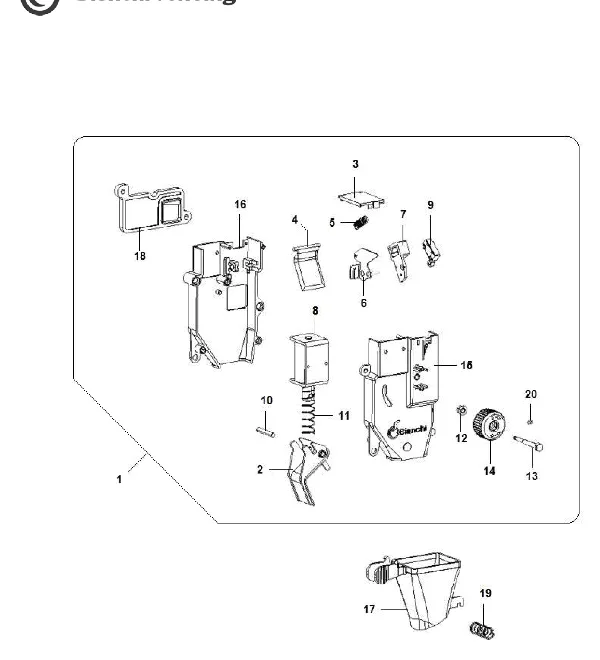

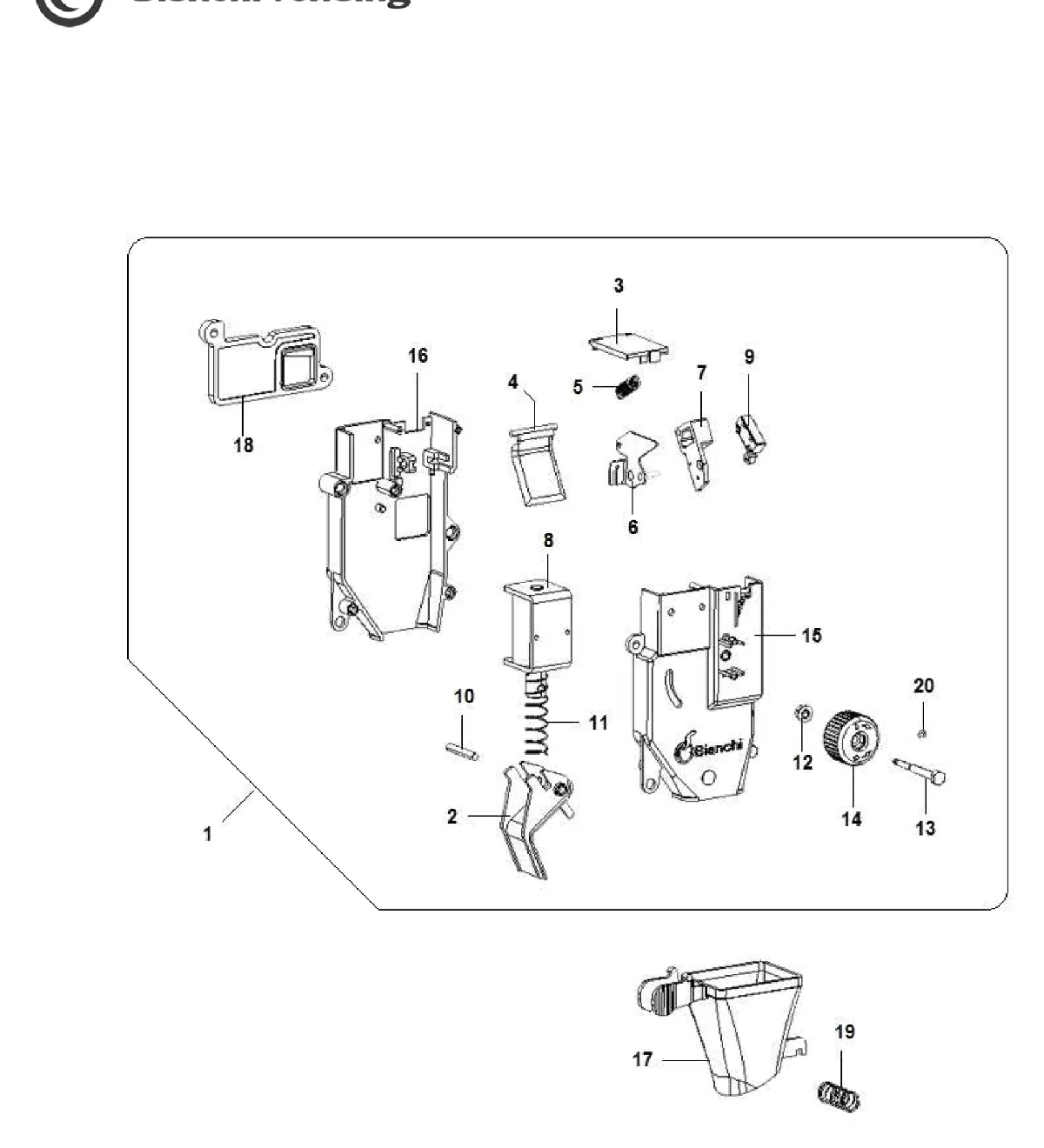

ASSEMBLY DOSER CAFFE (964)
Lámina 23 de 26
Piezas de esta lámina
- 1 doser assy with spacer
- 2 coffee doser tray
- 3 Black M/T coffee doser cover
- 4 coffee doser mobile bulkhead
- 5 spring
- 6 MICRO SUPPORT
- 7 SUPP.MICRO DOS-CAFFE C/POM.NERO
- 8 magnet 5% 24v dc
- 9 microswitch with cable(proof)
- 10 4x25 IX parallel pin
- 11 magnet spring
- 12 DADO ES FLANG.ZIG. PG DIN6923 CL 8 M4ZB
- 13 adjusting screw for micro
- 14 MANOPOLA NERO REGOLAZ.DOS-CAFFE
- 15 Black coffee doser front covering
- 16 Black coffee doser back M/T
- 17 Black cut coffee funnel
- 18 Black spacer doser
- 19 coffee funnel spring
- 20 seeger ring

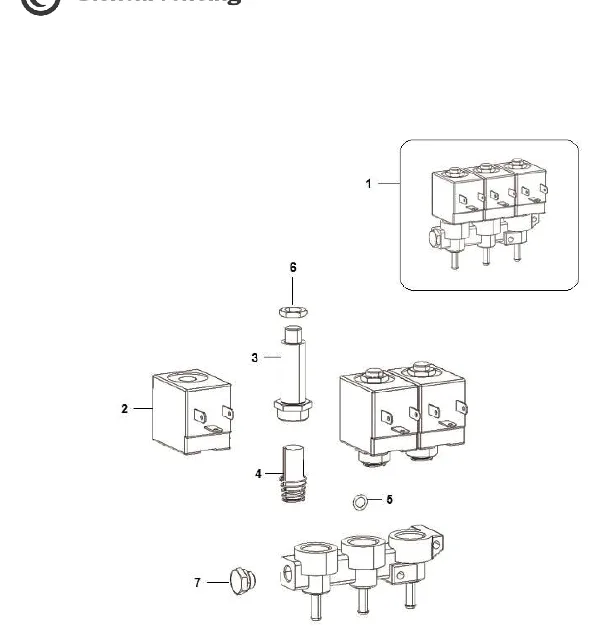

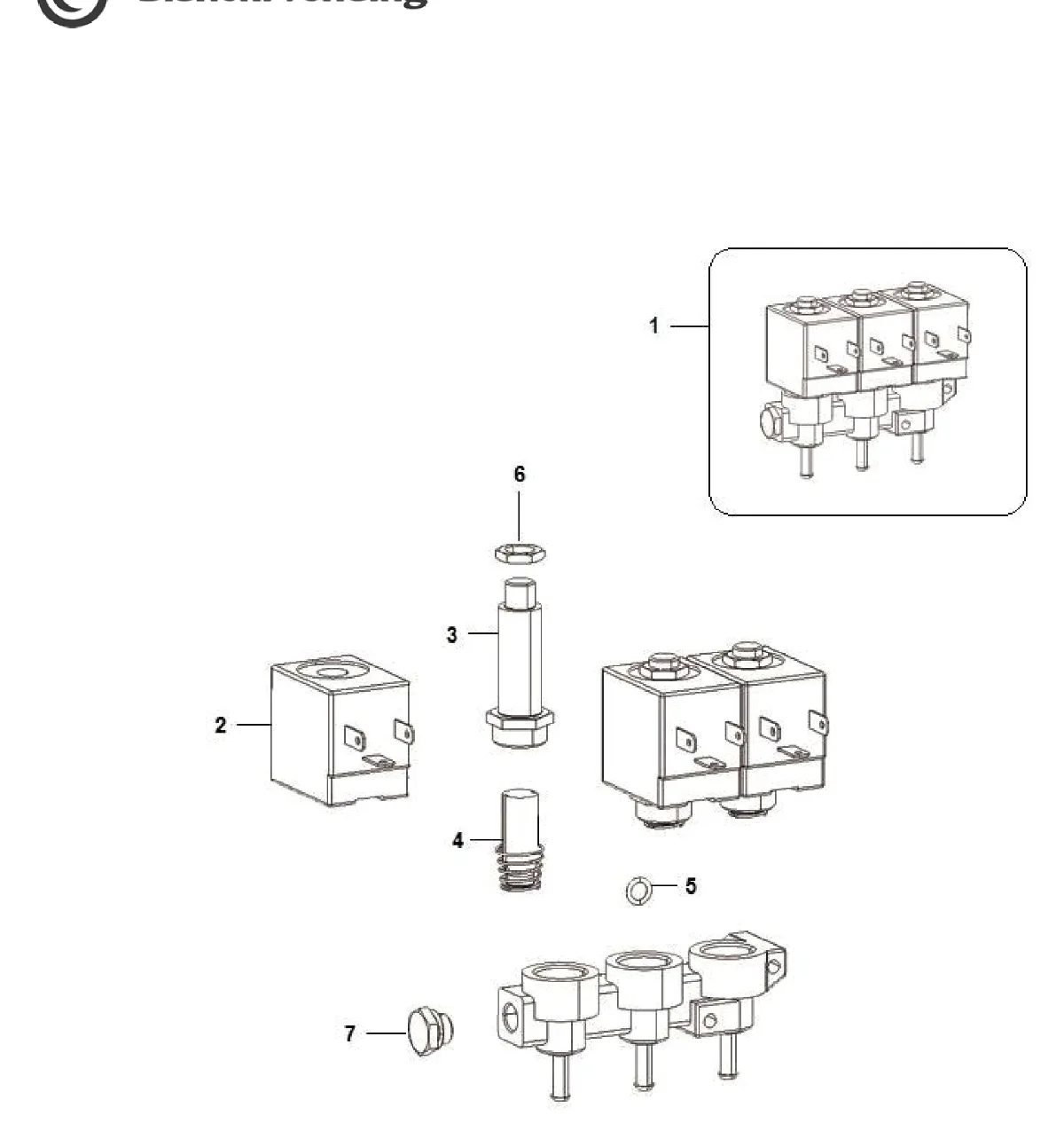

3 ELECTROV. 24V DC 2WAYS GROUP (116)
Lámina 24 de 26
Piezas de esta lámina
- 1 BLOC.3EV 2VIE DN2 24VDC OT57-TM3
- 2 electrovalve coil 25019416
- 3 CANOTTO OLAB Ø12,00 mm
- 4 OLAB plunger 2W
- 5 9,63x6,07 o-ring viton
- 6 Coil locking nut
- 7 Threaded cap 1/8NICH.6084/2N

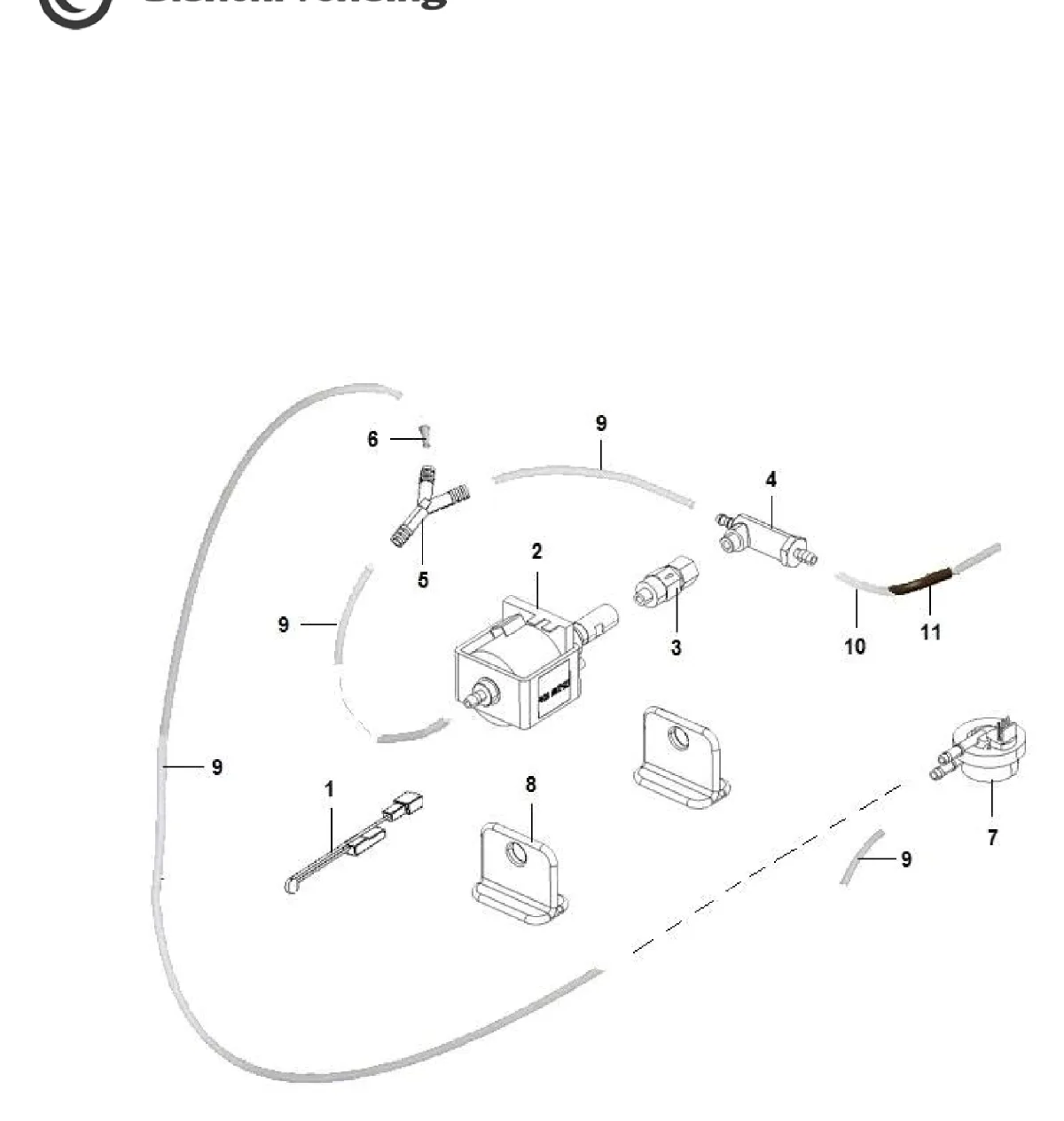

HYDRAULIC CONNECTIONS (1271)
Lámina 25 de 26
Piezas de esta lámina
- 1 Clixon Microtherm F11 100° C
- 2 EL-POMPA EP5 230V 50/60HZ PX50-A2P-N08R
- 3 Male unleaded anti return valve
- 4 SAFETY VALVE 11BAR PRO
- 5 3ways connector 9mm ext.
- 6 RIDUT.CAM-MISCELAZ.INT.Ø1.7mm-2,6mmNERO
- 7 flow sensor
- 8 Pump support (ULKA/FLUIDOTECH)
- 9 5x9 transparent silicone pipe
- 10 TUBO PTFE 6x4 CALIBRATO Pmax 68BAR #
- 11 TUBO SIL.SZ.7X11 NERO

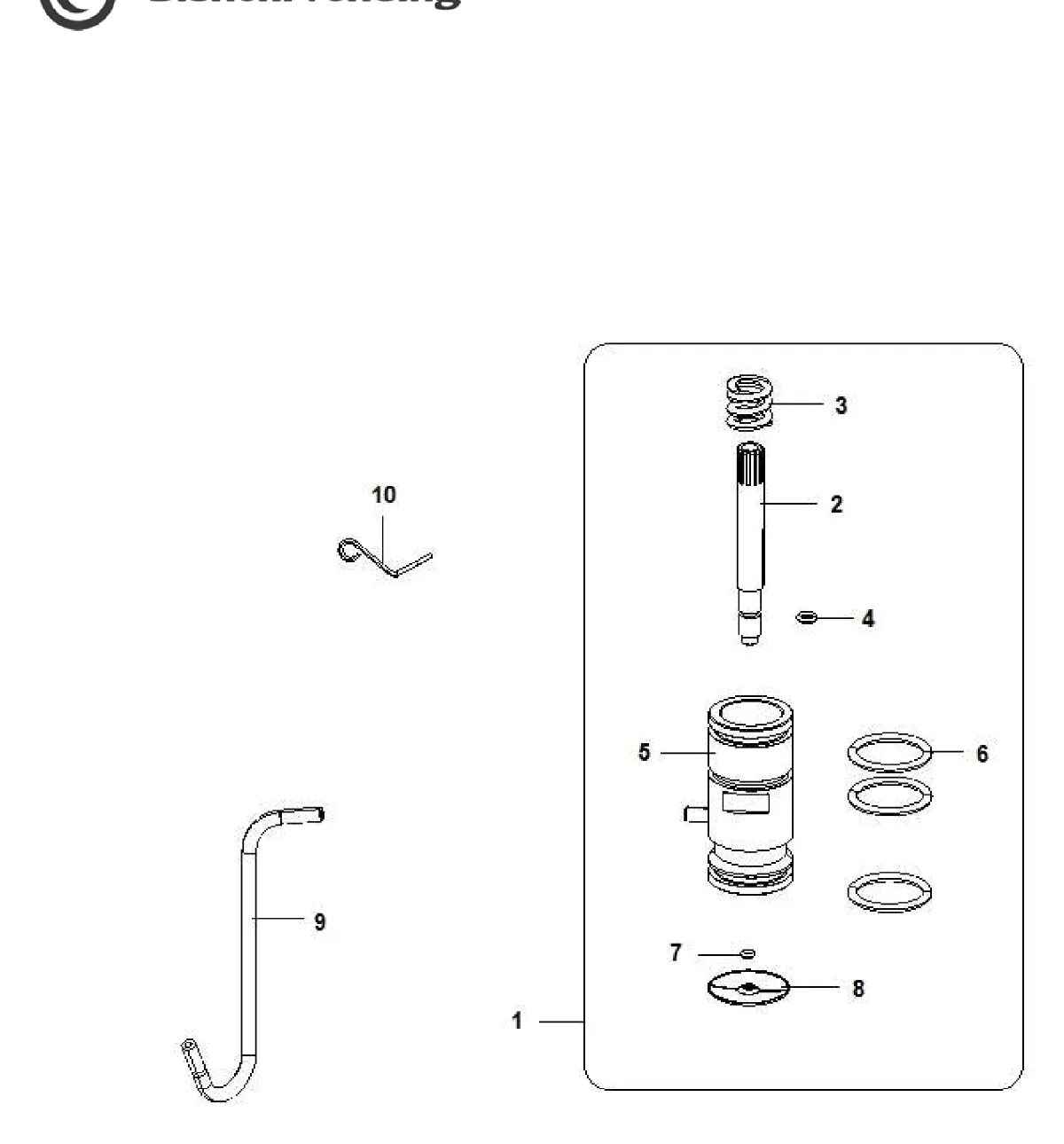

ASSEMBLY PISTON (7)
Lámina 26 de 26
Piezas de esta lámina
- 1 Cegasa coffee-gr. piston assy
- 2 POMOLO FILTRO PISTONE NERO
- 3 piston spring
- 4 OR 5,28X1,78 FKM 75SH NERO
- 5 Piston with valve seat
- 6 OR 28,1X 3,53 FKM 75SH NERO
- 7 OR 2,57X1,78 KFM 75SH NERO
- 8 ASS.TRASS.FILTRO GR-CAFFE MAGG.
- 9 TUBO SIL.SZ.3X6 NERO
- 10 piston block rod
